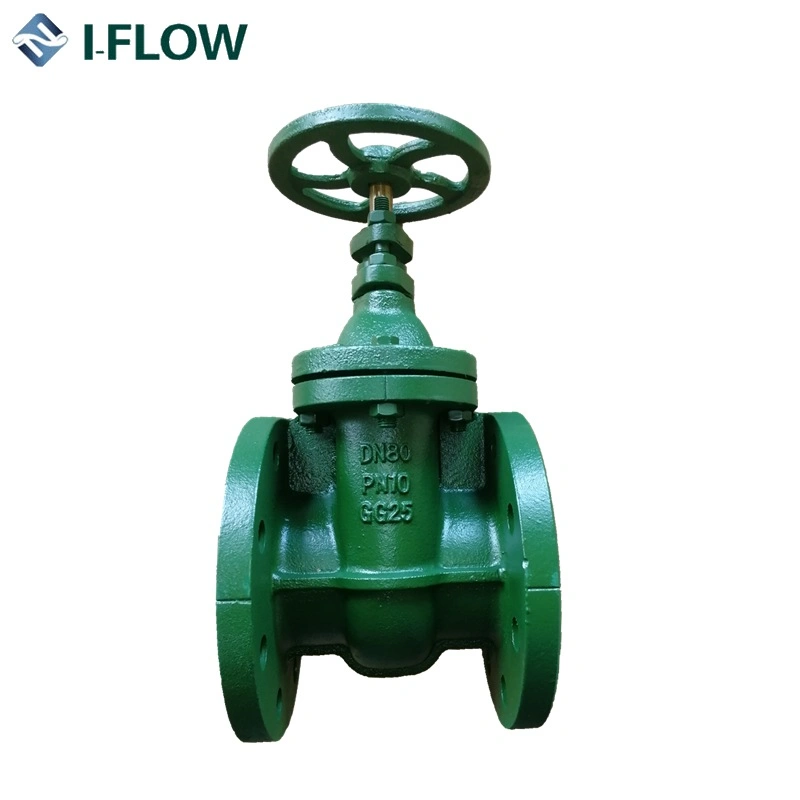

DIN3352 Cast Iron Gate Valve F4 Nrs Bronze Trim

Product Description

DIN 3352-F4 cast Iron non-rising Stem Metal Seat Flanged Gate
Valve

1.Design conforms to DIN 1171.

2.Face to face dimensions conform to EN558.1 F14

3.Flanges drilled to EN1092-2 PN10/16.

4. Suitable media: Water.

5.Suitable temperature:-30 C-200 C.

6.Test according to EN12266-1 grade C.
DIN3352 Cast Iron Gate Valve F4 Nrs Bronze Trim

Specification

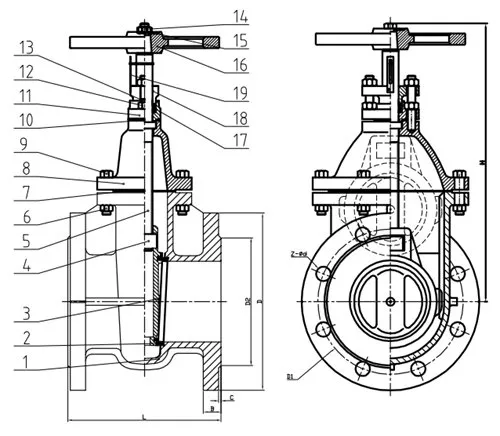

SIZE	L	D	D1	D2	B	C	z-d	H
40	140	150	110	84	16	3	4-19	203
50	150	165	125	99	20	3	4-19	220
65	170	185	145	118	20	3	4-19	245
80	180	200	160	132	22	3	8-19	280
100	190	220	180	156	22	3	8-19	331
125	200	250	210	184	24	3	8-19	396
150	210	285	240	211	24	3	8-19	438

NO.	PART NAME	MATERIAL	MATERIAL STANDARD
1	BODY	DUCTILE IRON	GGG40.3
2	BODY SEAT RING	CAST BRONZE	CC491K
3	WEDGE	DUCTILE IRON+BRONZE	GGG40.3+CC491K
4	WEDGE BUSHING	CAST BRASS	ASTM B584
5	STEM	BRASS	CW710R
6	NUTS	STEEL	ASTM A307 B
7	BODY GASKET	GRAPHITE
8	BONNET	DUCTILE IRON	GGG40.3
9	BOLTS	STEEL	ASTM A307 B
10	GASKET	RUBBER GRAPHITE
11	STUFFING BOX	DUCTILE IRON	GGG40.3
12	NUTS	STEEL	ASTM A307 B
13	BOLTS	STEEL	ASTM A307 B
14	BOLTS	STEEL	ASTM A307 B
15	WASHER	STEEL	ASTM A307 B
16	HANDWHEEL	CAST IRON	GG25
17	PACKING	GRAPHITE
18	PACKING GLAND	DUCTILE IRON	GGG40.3
19	INDICATOR	CAST BRONZE	CC491K
