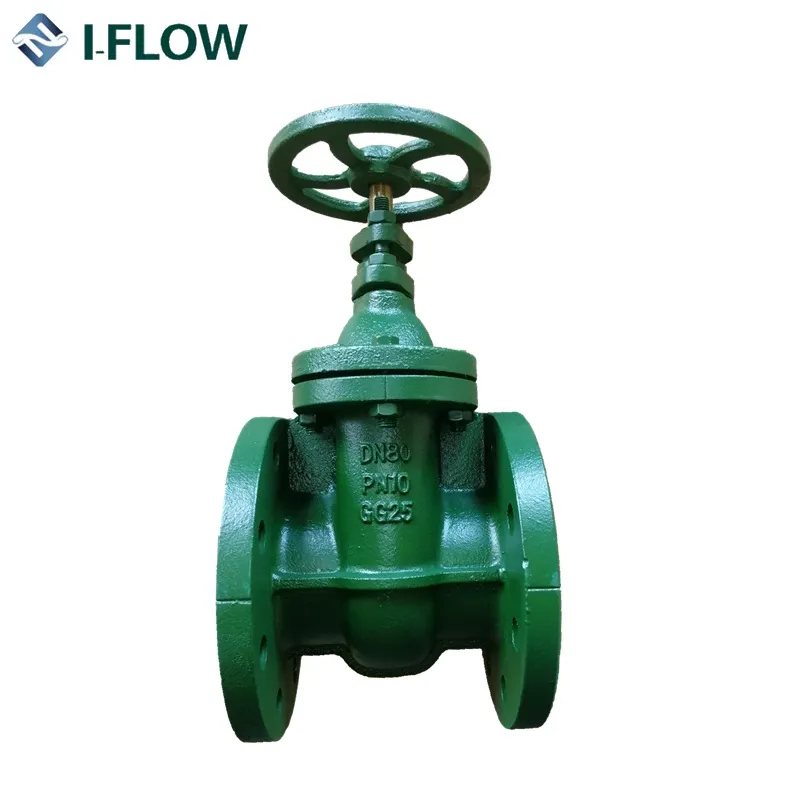

DIN3352 Ductile Iron Gate Valve F4 Nrs Bronze Trim with Indicator Class Approved
DIN F4 NRS metal seat gate valve bronze trim for marine PN16TECHNICAL REQUIREMENT :1.Design conforms to DIN 1171. 2.Face to face dimensions conform to EN558.1 F14.3.Flanges drilled to EN1092-2 PN10/16. 4. Suitable media: Water.5.Suitable temperature:-30 C-200 C.6.Test according to EN12266-1 grade C.......
Send Inquiry
Product Description
DIN F4 NRS metal seat gate valve bronze trim for marine PN16
TECHNICAL REQUIREMENT :
1.Design conforms to DIN 1171.
Dimensions Data(mm)
Company Profile
Qingdao I- Flow Co., Ltd., established in 2010,located in the beautiful city of Qingdao,China . Our products include marine valve,butterfly valve, balancing valve, gate valve, globe valve, knife gate valve,check valve , ball valve. in cast iron,brass, bronze, polypropylene etc, to be applied in water treatment, HVAC, marine, oil and gas etc.
IFLOW owns research and development team, and is managed strictly under the rules of ISO 9001 quality control system , we have supplied flow control products for international clients for more than 10 years and are selling to more than 40 countries, such as USA, Germany, Italy, Holland, Sweden, Norway, Singapore, U.K, U.A.E, Australia, Brazil, Peru etc.. Our products are used in Shangrila Hotel, Kerry Center, Milan Expo,MSC vessels etc, In addition, we and associated company have obtained CE, WRAS, DNV,GL,LR, ABS certificates.
Our Mission: Good valve with caring service.
We greatly appreciate your time and look forward to serving you in the near future!
FAQ
1. Can I have a sample order for valve?
A: Definitely Yes. We welcome your sample order for test and quality check. Mixed samples are acceptable.
2. Can you provide OEM or ODM service?
A: Yes, we have professional research & development team. The products can be manufactured as per your request.
3. Can you provide the relevant documentation and certificate?
A: Yes, we can provide you with the documentation and certificate you need, ISO9001:2000 international quality system certification, (CE)certification of the European Community, Det Norske Veritas (DNV) factory certificate, Lloyd's Register (LR) factory certificate, China Classification Society (CCS) quality system certificate and the FM/UL certification of the US, Bureau Veritas(BV) , American Bureau of Shipping(ABS) etc. Of course we can also provide you the test Report; Certificate of Material Analysis; Certificate of Origin; and other export documents if required.
4. What is your terms of delivery?
A: We accept EXW, FOB, CIF, DAP etc. You can choose the one which is the most convenient for you.

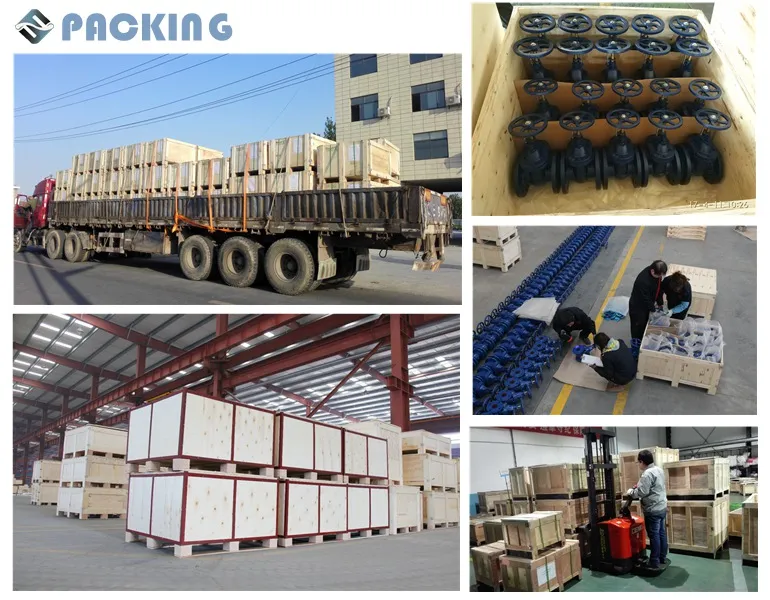

5. What's the package and how do you ship the goods?
A: Usually sea worthy plywood cases. We usually ship by sea. Train and air delivery are also optional.
6. How to deal with after sales ?
A: Warranty time: 12 months from the shipment; and we will be responsible for all the quality problems. Longer warranty period could be provided with detailed request and discussion.
7. What is the average lead time?
A: For samples, the delivery time is about 2-5 days. For batch production, the lead time is about 15-60 days after receiving the deposit payment. We can provide production schedule and related photos every two weeks. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for production drawings. If our lead times do not work with your deadline, please send your requirements with your sale. In all cases we will try to accommodate our production plan to your needs.
8. Why choose us?
A:1 Genuine products with excellent quality and competitive price.
2, Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3, We have been specializing in flow control area for more than 15 years. Everyone can be rest assured working with us. 4, After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
9: How can I trust your company?
A: We are verified Golden supplier and creditable company on Made-In-China, we are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 15 years ago, Including Fortune 500 companies. Customers always make highly complimentary remarks.
TECHNICAL REQUIREMENT :
1.Design conforms to DIN 1171.
2.Face to face dimensions conform to EN558.1 F14.
3.Flanges drilled to EN1092-2 PN10/16.
4. Suitable media: Water.
5.Suitable temperature:-30 C-200 C.
6.Test according to EN12266-1 grade C.
Specification
| NO. | PART NAME | MATERIAL | MATERIAL STANDARD |
| 1 | BODY | DUCTILE IRON | GGG40.3 |
| 2 | BODY SEAT RING | CAST BRONZE | CC491K |
| 3 | WEDGE | DUCTILE IRON+BRONZE | GGG40.3+CC491K |
| 4 | WEDGE BUSHING | CAST BRASS | ASTM B584 |
| 5 | STEM | BRASS | CW710R |
| 6 | NUTS | STEEL | ASTM A307 B |
| 7 | BODY GASKET | GRAPHITE | |
| 8 | BONNET | DUCTILE IRON | GGG40.3 |
| 9 | BOLTS | STEEL | ASTM A307 B |
| 10 | GASKET | RUBBER GRAPHITE | |
| 11 | STUFFING BOX | DUCTILE IRON | GGG40.3 |
| 12 | NUTS | STEEL | ASTM A307 B |
| 13 | BOLTS | STEEL | ASTM A307 B |
| 14 | BOLTS | STEEL | ASTM A307 B |
| 15 | WASHER | STEEL | ASTM A307 B |
| 16 | HANDWHEEL | CAST IRON | GG25 |
| 17 | PACKING | GRAPHITE | |
| 18 | PACKING GLAND | DUCTILE IRON | GGG40.3 |
| 19 | INDICATOR | CAST BRONZE | CC491K |
Dimensions Data(mm)
| SIZE | L | D | D1 | D2 | B | C | z-d | H |
| 40 | 140 | 150 | 110 | 84 | 16 | 3 | 4-19 | 203 |
| 50 | 150 | 165 | 125 | 99 | 20 | 3 | 4-19 | 220 |
| 65 | 170 | 185 | 145 | 118 | 20 | 3 | 4-19 | 245 |
| 80 | 180 | 200 | 160 | 132 | 22 | 3 | 8-19 | 280 |
| 100 | 190 | 220 | 180 | 156 | 22 | 3 | 8-19 | 331 |
| 125 | 200 | 250 | 210 | 184 | 24 | 3 | 8-19 | 396 |
| 150 | 210 | 285 | 240 | 211 | 24 | 3 | 8-19 | 438 |
