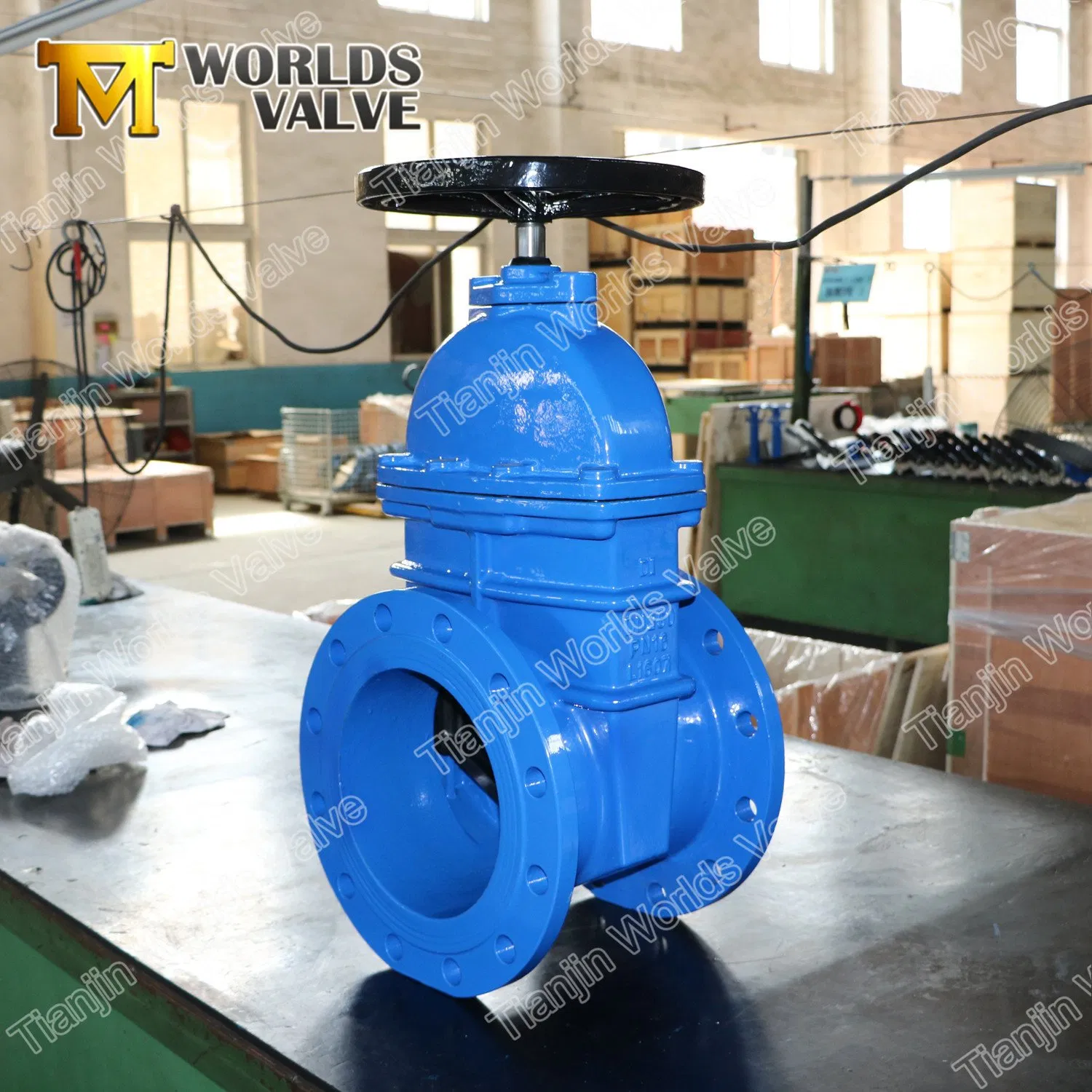

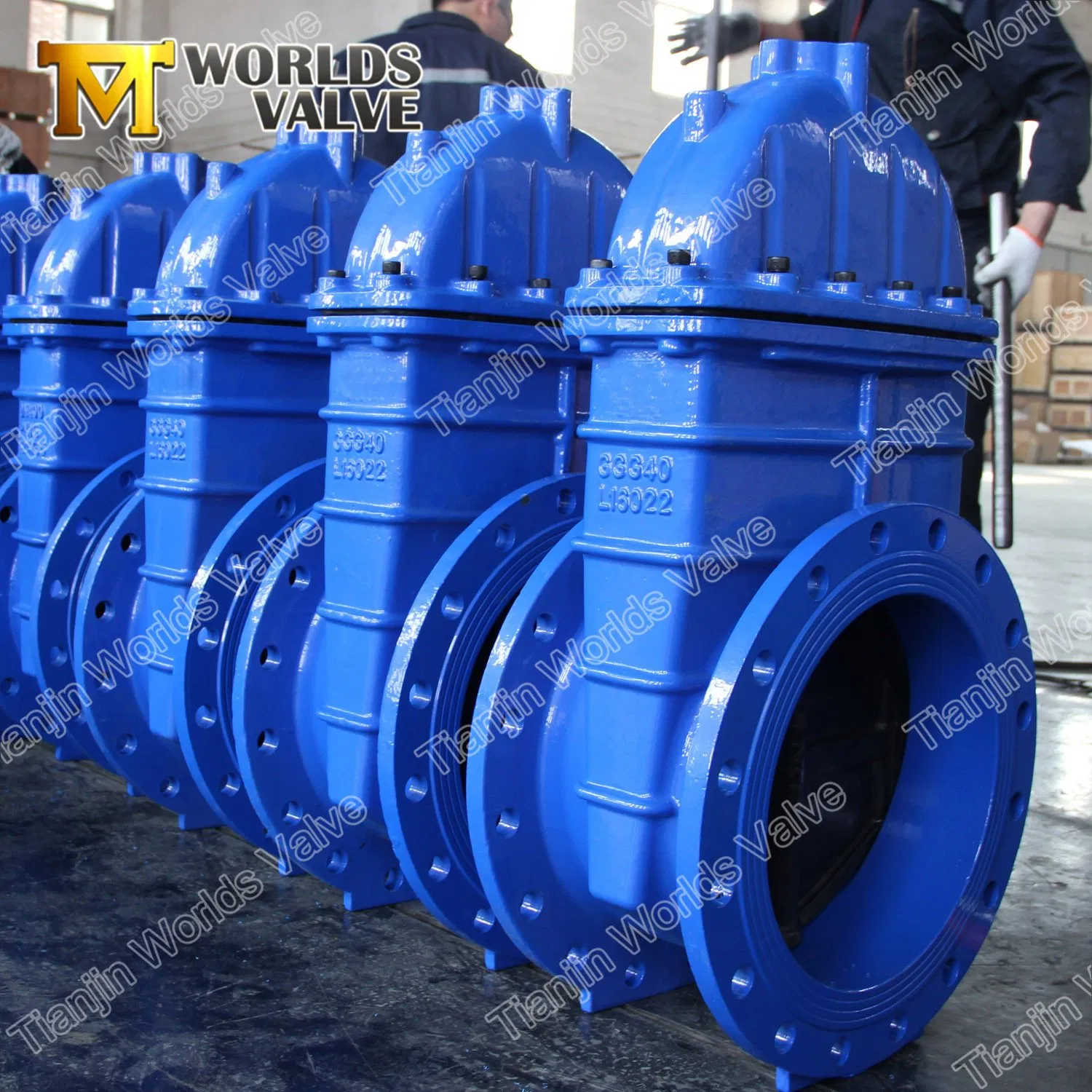

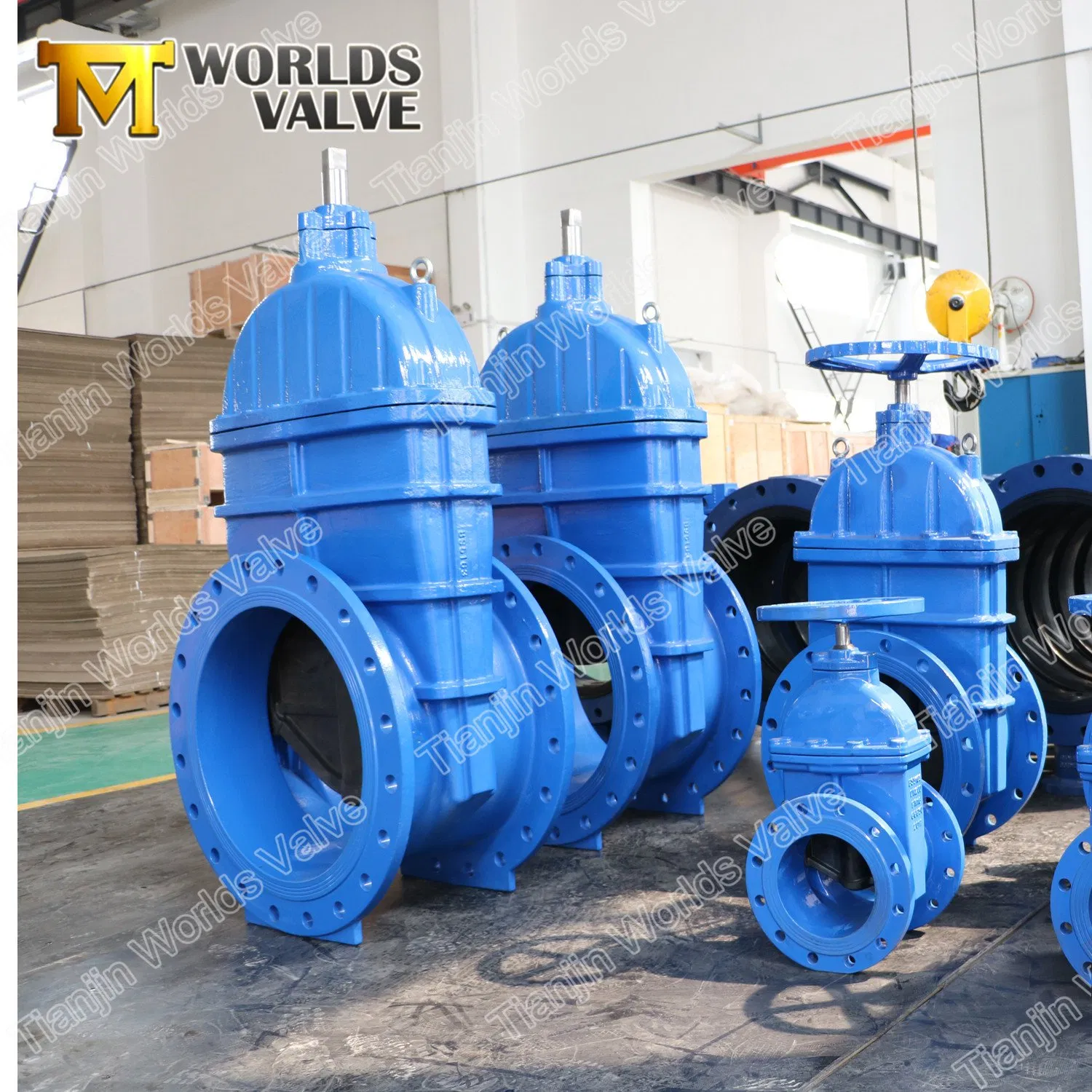

Ductile Iron Ggg40 Ggg50 A536 A395 Body Rubber Wedge Sluice Gate Valve

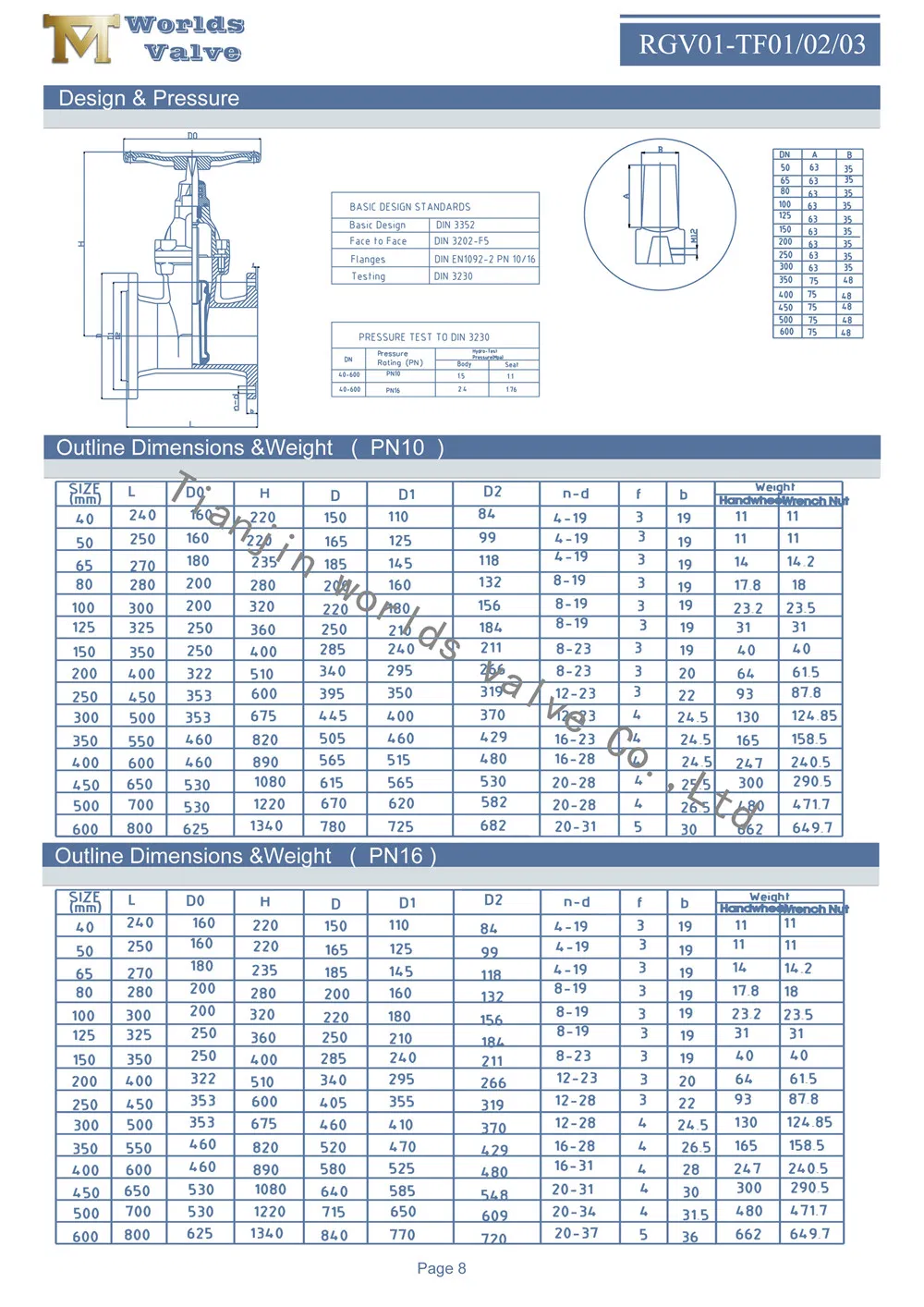

Detailed Description:SeriesNon-rising stem/Rising stem resilient seated gate valveSize:DN40-DN1200Design standard:GB/T 12232-2005 DIN3352, EN593, MSS SP-67Pressure standard:GB/T 13927-1992, API598Face to face:DIN3202 F4, F5, BS5155Flange standard:DIN2532, DIN2533Body:CI/DI/WCB/ALB/CF8/CF8MDisc:DI/AL......
Send Inquiry
Product Description
| Detailed Description: | |
| Series | Non-rising stem/Rising stem resilient seated gate valve |
| Size: | DN40-DN1200 |
| Design standard: | GB/T 12232-2005 DIN3352, EN593, MSS SP-67 |
| Pressure standard: | GB/T 13927-1992, API598 |
| Face to face: | DIN3202 F4, F5, BS5155 |
| Flange standard: | DIN2532, DIN2533 |

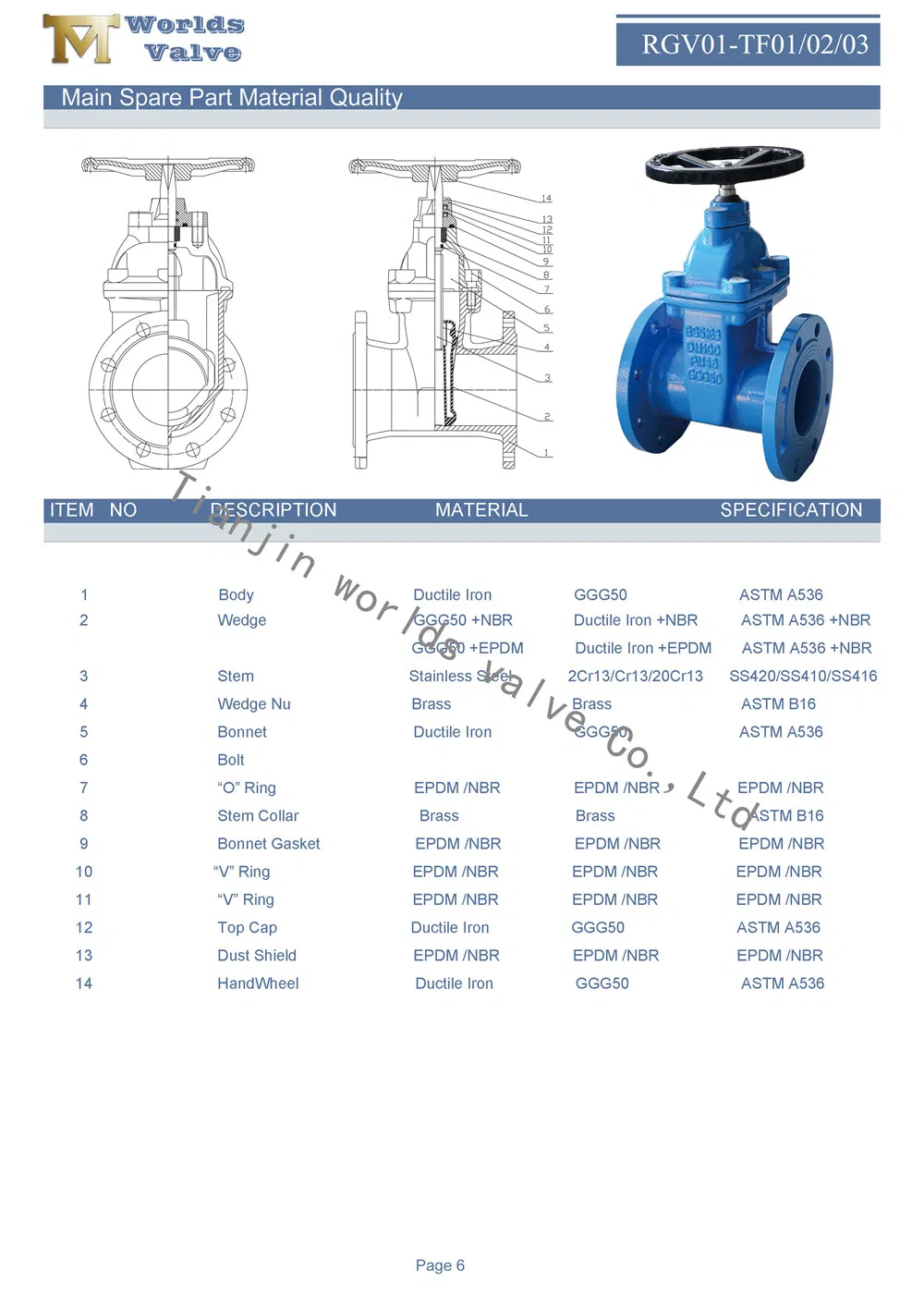

| Body: | CI/DI/WCB/ALB/CF8/CF8M |
| Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
| Stem: | SS416/SS304/SS431/17-4PH |
| Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(/PTFE |
| Suitable temperature: | -10~90 |
| Medium: | Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
Product Feature:
flat style seat
The overall package glue
corrosion-resistant
difficult to fragmentation
three "O" ring seal
flexible wedge offers superior tightness of seats and freedom from sticking.
pressure seal design
Lightweight

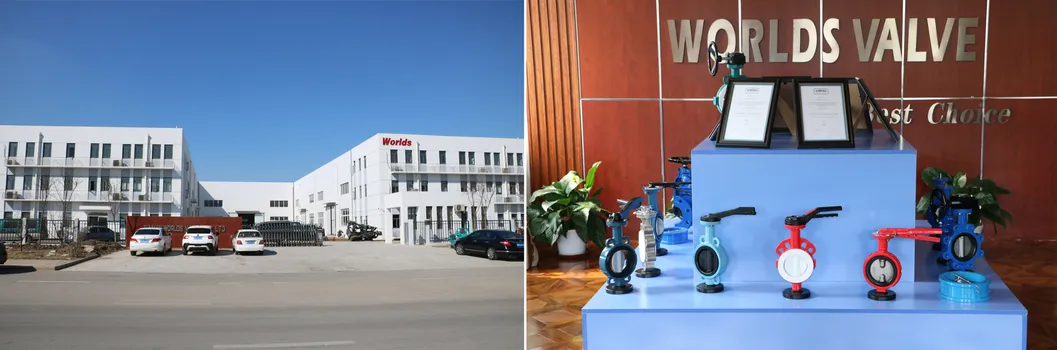

**COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand.

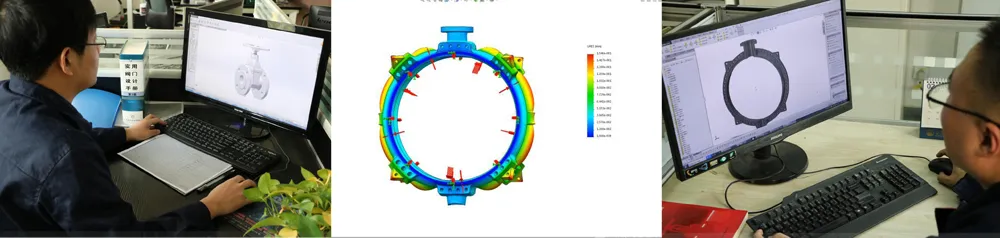

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc

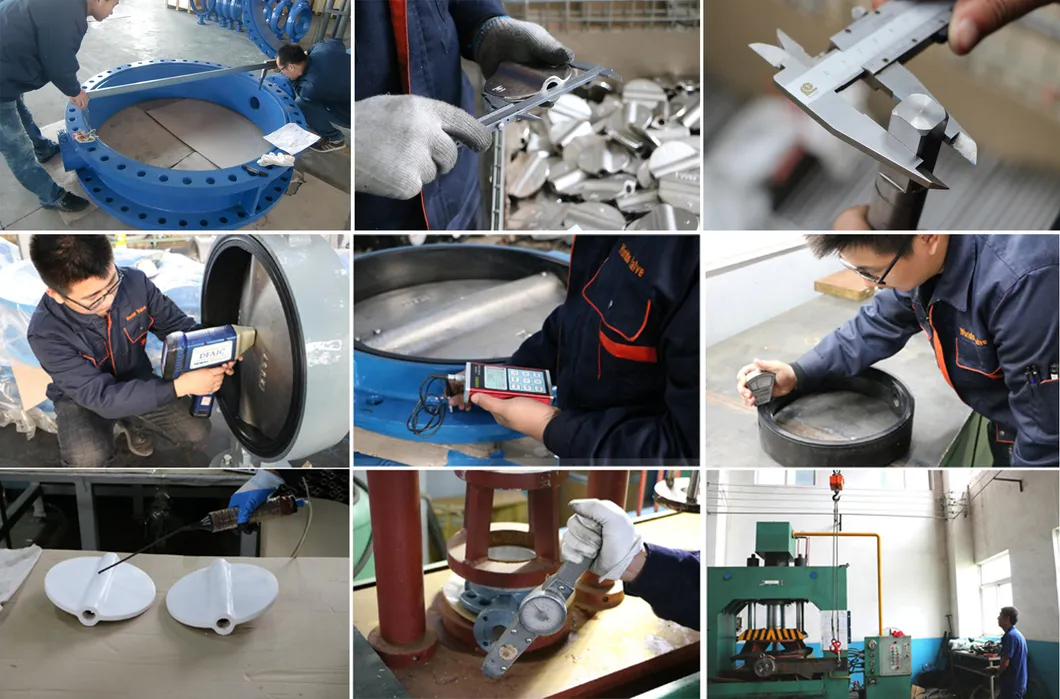

**Dimension Measurement &Inspection

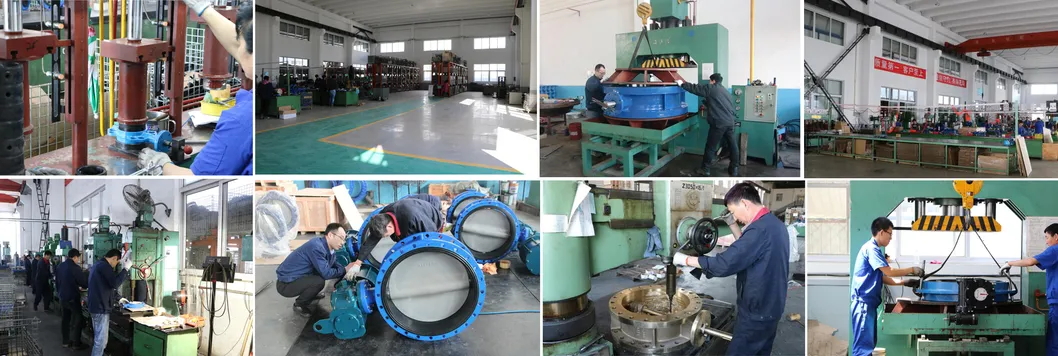

**Assembly Workshop

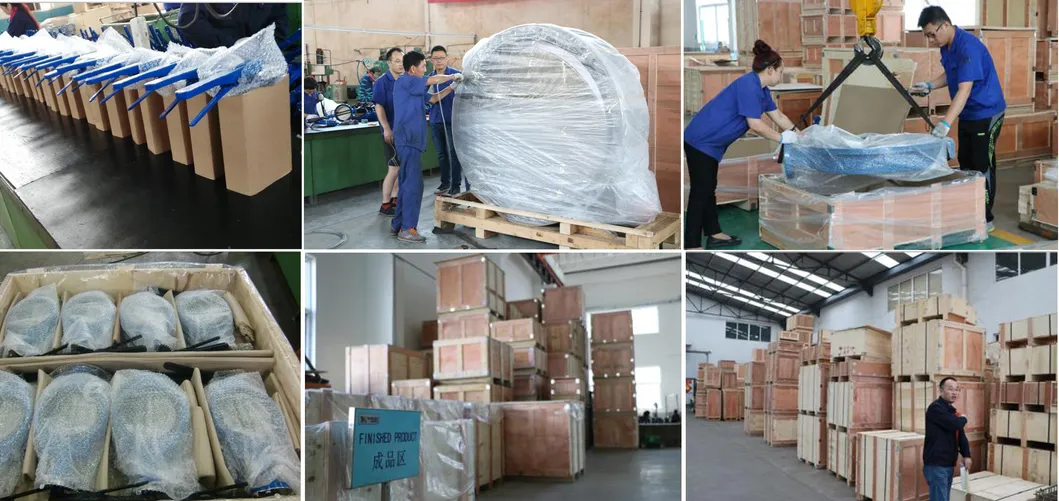

**Packaging

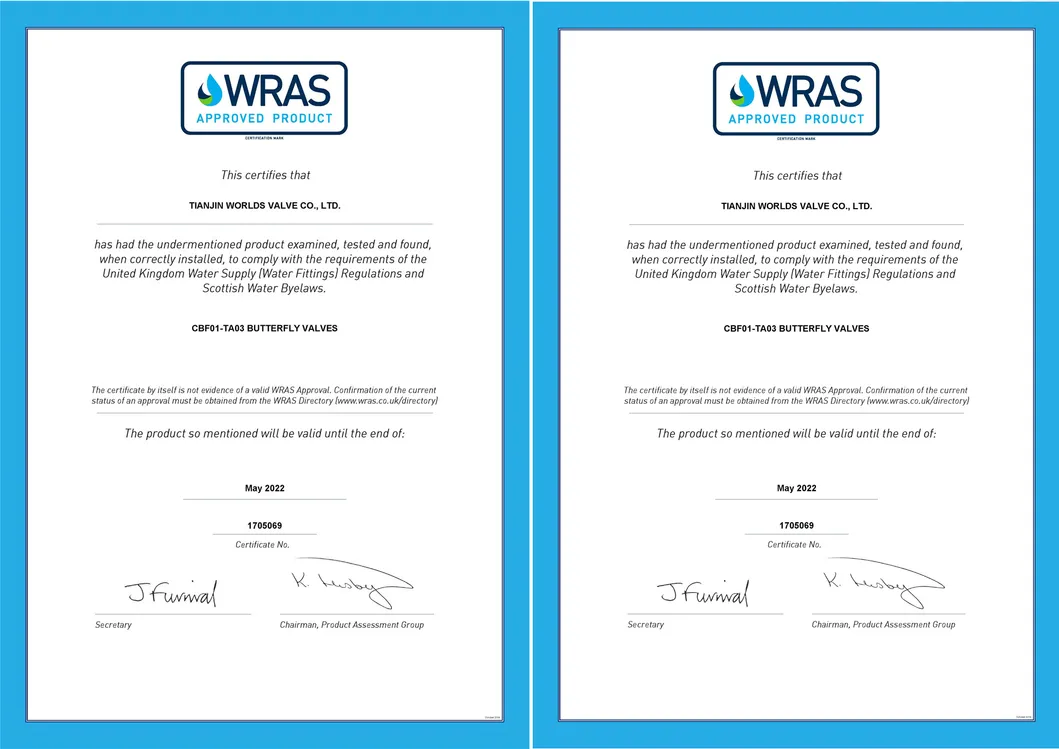

**Certificates -- CE ISO WRAS ACS certificates
