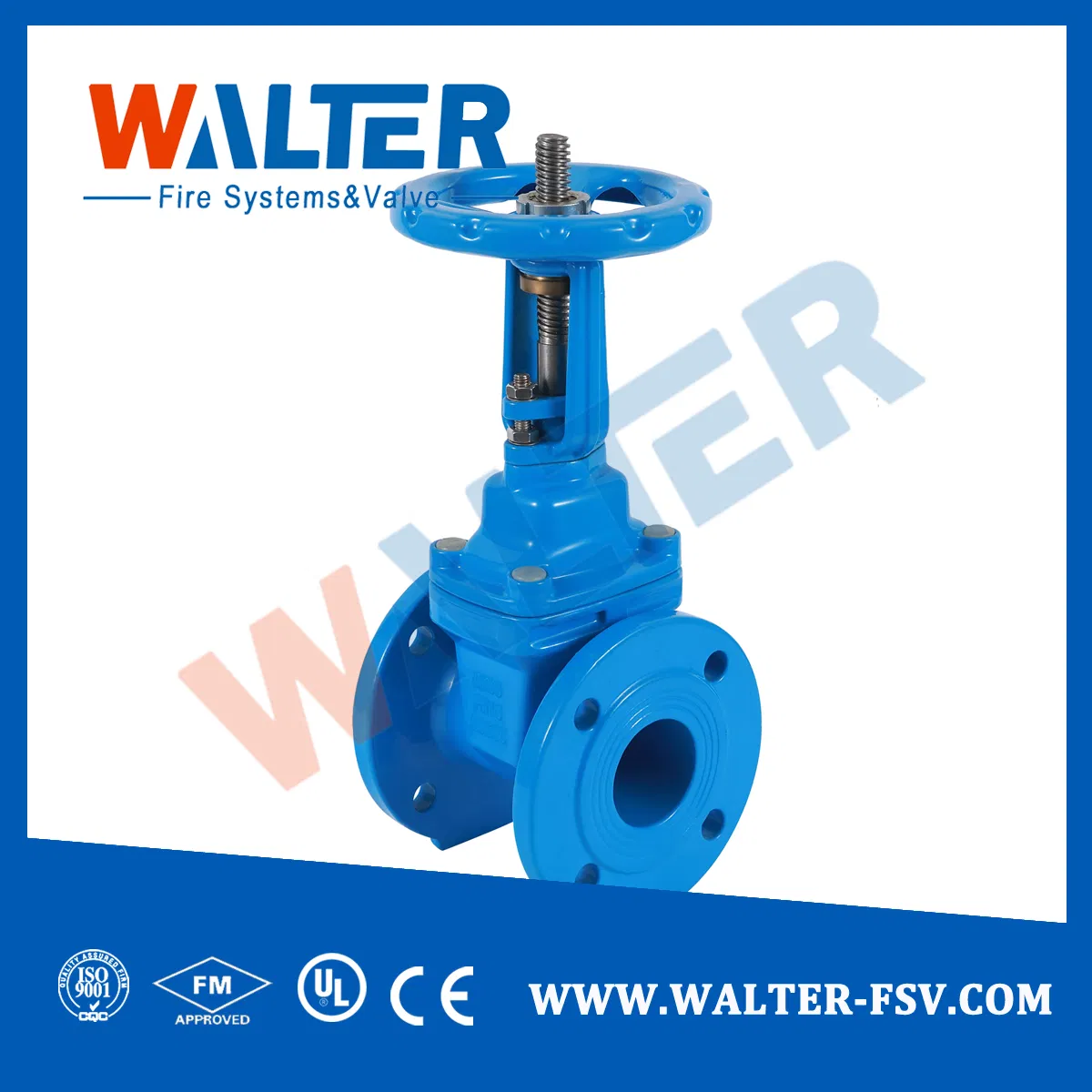

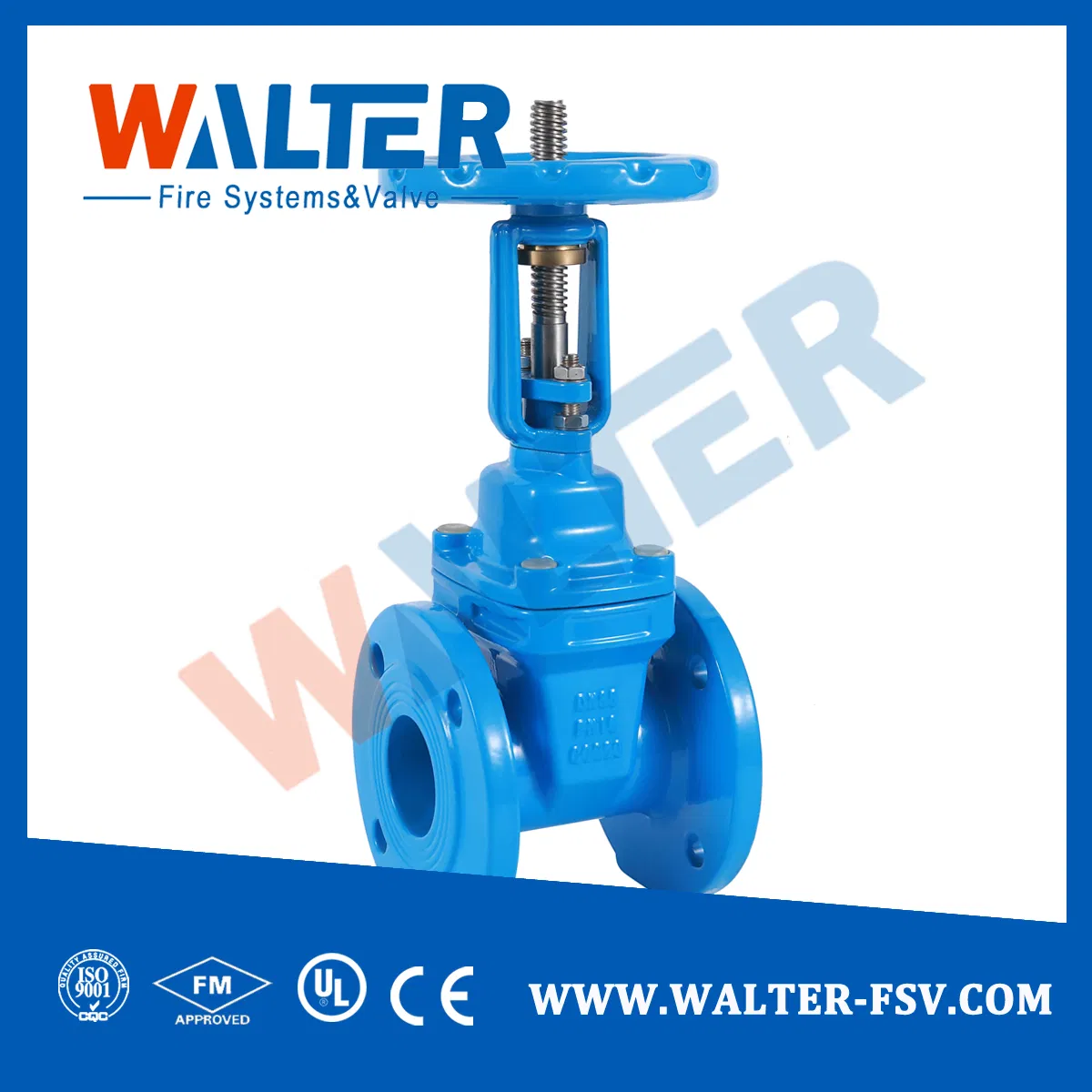

Rising-Stem Flange End Sluice valve

Product Description

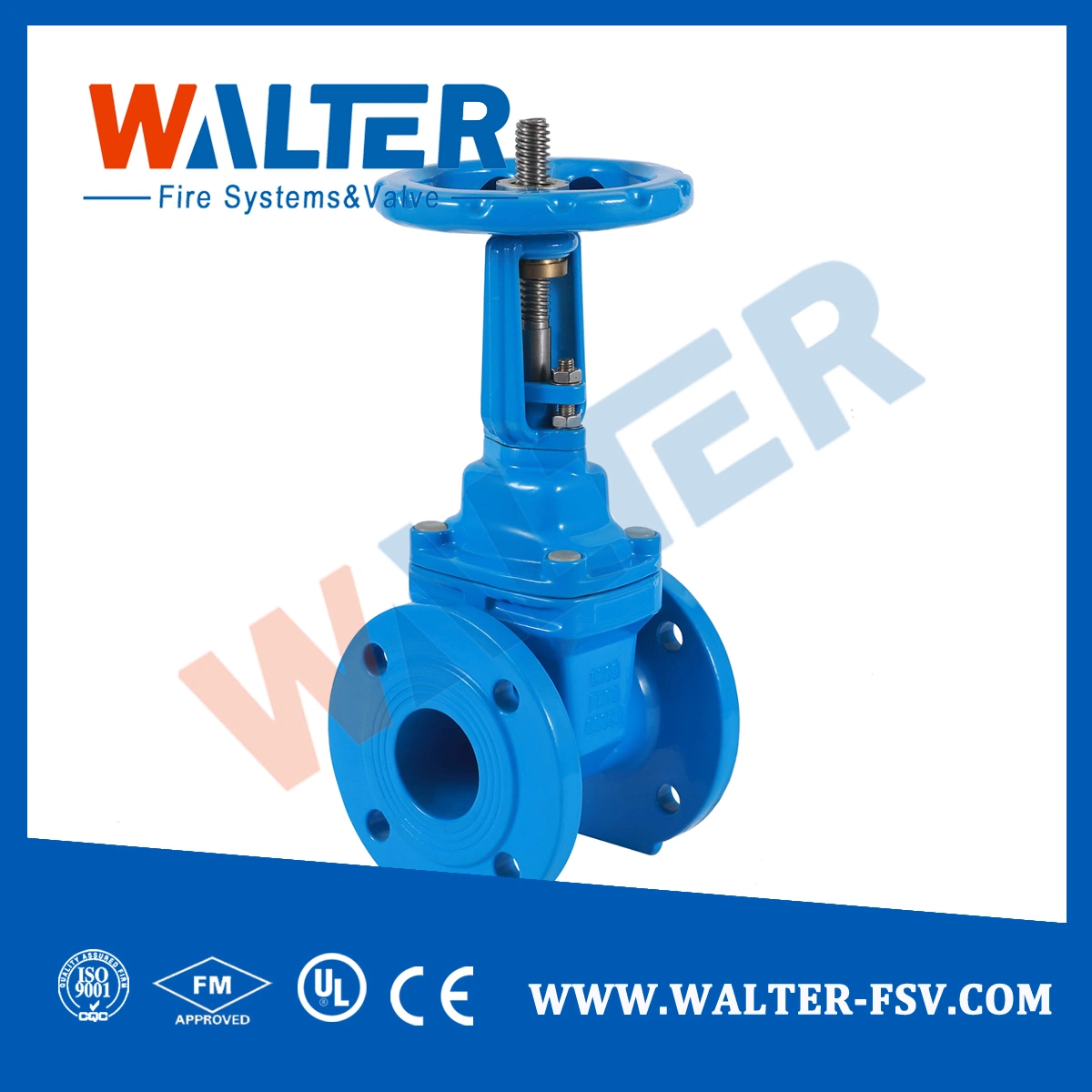

Rising Stem OS&Y Gate Valve

Application:
OS&Y Gate Valve are suitable for use in potable water,sewage water,water supply,fire-ffighting system.
As a experienced Valve manufacturer,we keep high quality rubber bring 0-LEAKAGE.

Product Standard:

Design : GB/T12232, BS5163, EN1171 / EN1074

Flanges : BS EN 1092-2 ASME B16.1

Face to face : DIN3202-F4/F5, BS EN558-1, ASME B16.1

Test : BS EN12266-1,API598

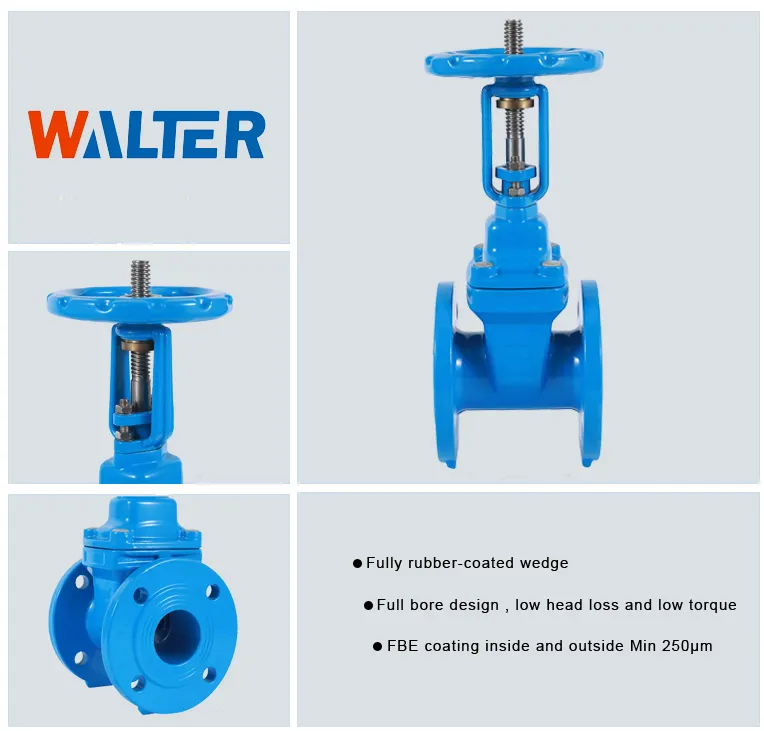

Features:
1 FBE coating inside and outside Min 250μm
2 Full bore design , low head loss and low torque
3 Fully rubber-coated wedge

Item	Part	Material
1	Body	EN GJS 500-7
2	Bonnet	EN GJS 500-7
3	Gland	EN GJS 500-7
4	Gland Bolt	SS304
5	Bracket	EN GJS 500-7
6	Wedge	DI+EPDM
7	Wedge Nut	Brass
8	Stem	AISI 420/Brass
9	Holding Rings	Brass
10	Seal Rings	NBR/EPDM
11	Hand Wheel	DI

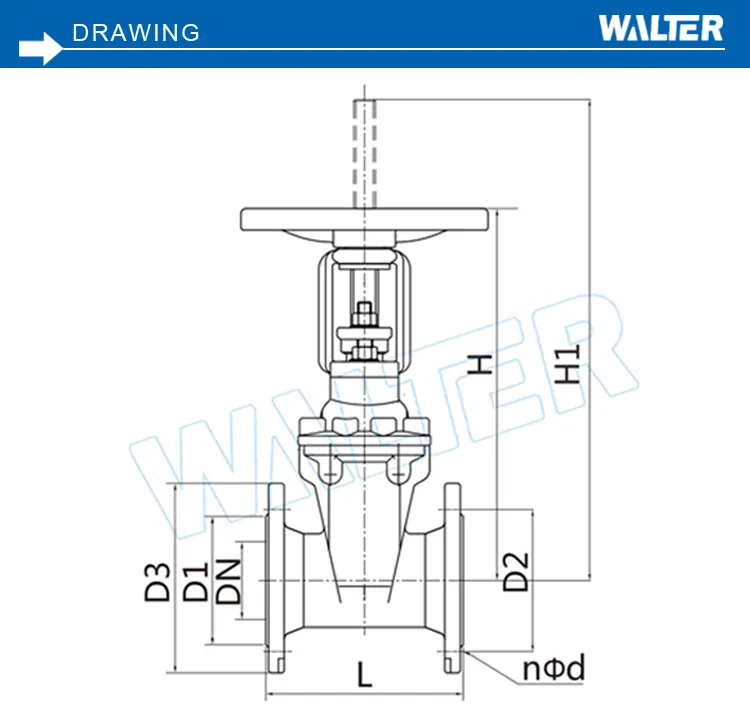

Code No.	Size	DN	L(F4)	L(BS)	D1	D2	D3	H	n-zφd PN10	n-zφd PN16
NRGV-0050	2"	50	150	178	99	125	165	220	4-φ19	4-φ19
NRGV-0065	21/2"	65	170	190	118	145	185	240	4-φ19	4-φ19
NRGV-0080	3"	80	180	203	132	160	200	290	8-φ19	8-φ19
NRGV-0100	4"	100	190	229	156	180	220	330	8-φ19	8-φ19
NRGV-0125	5"	125	200	254	184	210	250	375	8-φ19	8-φ19
NRGV-0150	6"	150	210	267	211	240	285	420	8-φ23	8-φ23
NRGV-0200	8"	200	230	292	266	295	340	500	8-φ23	12-φ23
NRGV-0250	10"	250	250	330	319	355	405	610	12-φ23	12-φ28
NRGV-0300	12"	300	270	356	370	410	460	720	12-φ23	12-φ28
NRGV-0350	14"	350	290	381	429	470	520	920	16-φ23	16-φ28
NRGV-0400	16"	400	310	406	480	525	580	940	16-φ26	16-φ31
NRGV-0450	18"	450	330	432	548	585	640	1150	20-φ26	20-φ31
NRGV-0500	20"	500	350	457	609	650	705	1350	20-φ26	20-φ34
NRGV-0600	24"	600	390	508	720	770	840	1500	20-φ30	20-φ37

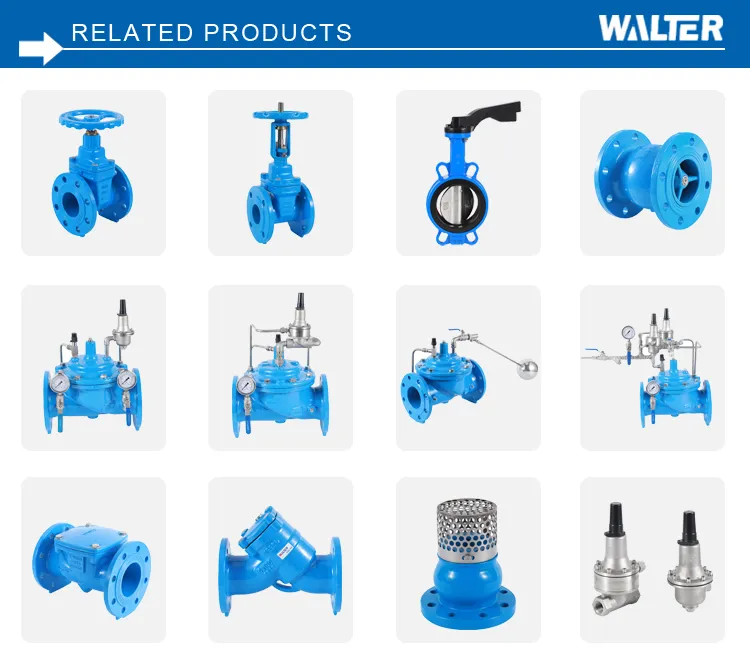

Suzhou Walter Flow Control Equipment Co., Ltd. Can supply OEM for Sluice Valve, Gate valve, Ball valve,Flange Butterfly Valve, Check Valve, Strainer, Pressure reducing valve,Fire hydrant etc.
