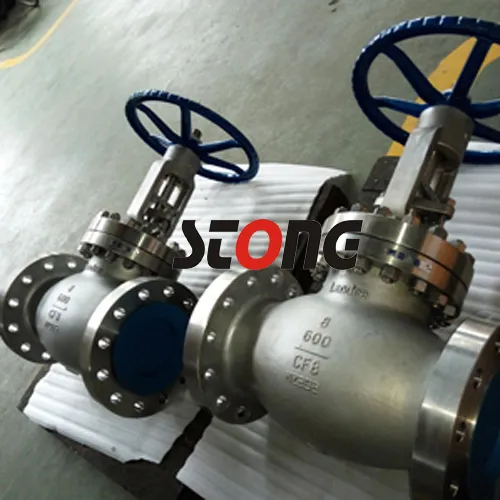

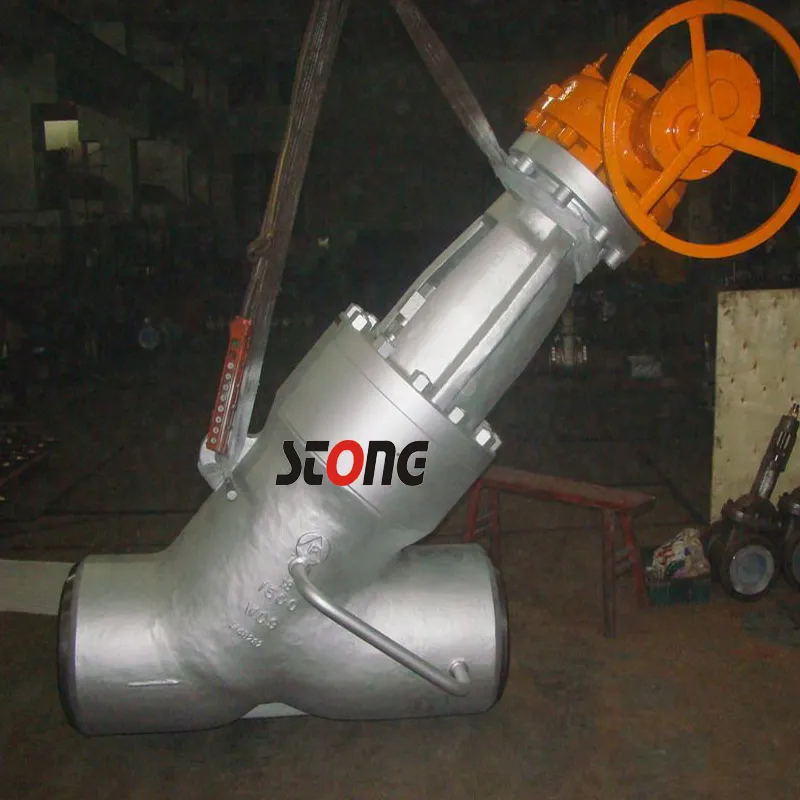

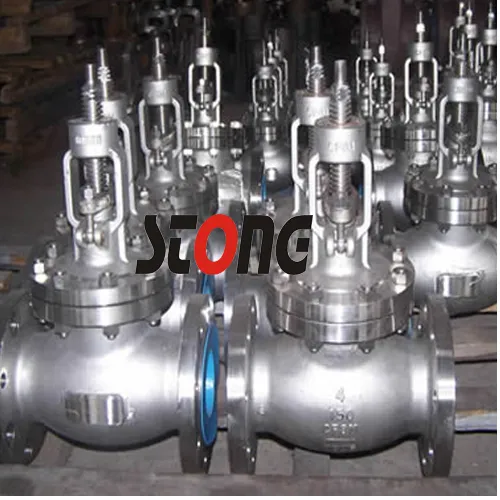

API ANSI BS Stainless Steel Cast Globe Valve for 150lb
API ANSI BS Stainless Steel Gate Valve Bolt Bonnet , RF,FF, BW,RTJ, OS&Y Size: 2'-40'Pressure: 150LB-2500LBDesign and manufacture conform to ASME 16.34 & BS 1873Test and check conform to API 598, API 6DRemarks conform to MSS-SP-25Adopt the following structureTaper sealing disc or sof......
Send Inquiry
Product Description
API ANSI BS Stainless Steel Gate Valve
Bolt Bonnet , RF,FF, BW,RTJ, OS&Y
Size: 2'-40'
Pressure: 150LB-2500LB
Design and manufacture conform to ASME 16.34 & BS 1873
Test and check conform to API 598, API 6D
Remarks conform to MSS-SP-25
Adopt the following structure
Taper sealing disc or soft seal structure
Self-centering gland
Bolted bonnet ,spiral would eight-square gasket
sealing bonnet or pressure seal bonnet
According to the follwing standard
Flange ends confrm to ASME B16.5 & ASME B 16.47A
Butt-welding ends conform to ASME B 16.25
Face to face dimension conform to ASME B 16.10
Operation type:hand wheel, worm gear, bevel gear, electrical, pneumatic and hydraulic etc
Main Dimensions & Weight
We are one professional Globe Valve, Globe Valves Manufacturer and Export in China.We can produce Gate valve,Globe Valves according to your requirements. If you are interested in any of Gate valves or steel Globe Valve or have a customized requirement to fill, please contact us right now !
Bolt Bonnet , RF,FF, BW,RTJ, OS&Y
Size: 2'-40'
Pressure: 150LB-2500LB
Design and manufacture conform to ASME 16.34 & BS 1873
Test and check conform to API 598, API 6D
Remarks conform to MSS-SP-25
Adopt the following structure
Taper sealing disc or soft seal structure
Self-centering gland
Bolted bonnet ,spiral would eight-square gasket
sealing bonnet or pressure seal bonnet
According to the follwing standard
Flange ends confrm to ASME B16.5 & ASME B 16.47A
Butt-welding ends conform to ASME B 16.25
Face to face dimension conform to ASME B 16.10
Operation type:hand wheel, worm gear, bevel gear, electrical, pneumatic and hydraulic etc
|

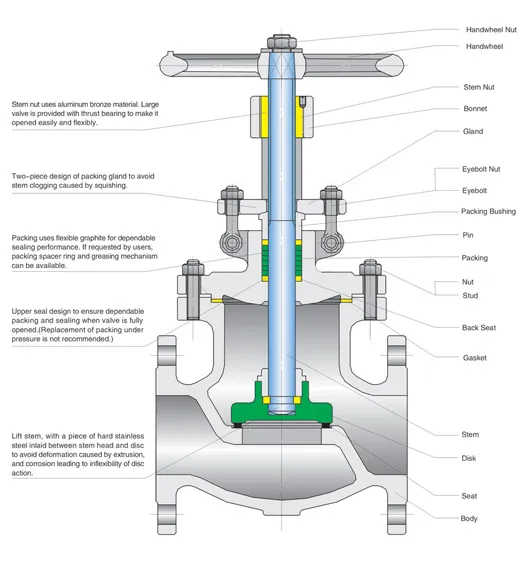

NO. | Part Name | Carbon Steel | Stainless Steel | Alloy Steel | Low Temperature Steel |
1 | Body | A216 GR WCB | A351 GR CF8 | A217 GR WC6 | A352 GR LCB |
2 | Seat | A105 | - | A182 GR F304 | A182 GR F304 |
3 | Disk | A216 GR WCB | A351 GR CF8 | A217 GR WC6 | A352 GR LCb |
4 | Stem | A276 TYPE 410 | A276 TYPE 304 | A182 GR F22 | A276 TYPE 304 |
5 | Stud | A193 GR B7 | A193 GR 8 | A193 GR B7 | A193 GR 8 |
6 | Nut | A194 GR 2H | A194 GR B8 | A194 GR 4 | A194 GR B8 |
7 | Back Seat | A182 GR F6a | A182 GR F304 | A182 GR F304 | A182 GR F304 |
8 | Gasket | Graphite+SS304 | |||
9 | Packing | Graphite | |||
10 | Pin | A194 GR 2H | A276 TYPE 304 | A276 TYPE 410 | A276 TYPE 304 |
11 | Packing Bushing | A182 GR F6a | A182 GR F304 | A182 GR F6a | A182 GR F304 |
12 | Eyebolt | A193 GR B7 | A193 GR B8 | A193 GR B7 | A194 GR B8 |
13 | Eyebolt Nut | A194 GR 2H | A193 GR 8 | A193 GR 4 | A193 GR 8 |
14 | Gland | A216 GR WCB | A351 GR CF8 | A216 GR WCB | A352 GR LCB |
15 | Bonnet | A216 GR WCB | A351 GR CF8 | A216 GR WCB | A352 GR LCB |
16 | Stem Nut | B148 UNS C95600 | B148 UNS C95600 | B148 UNS C95600 | B148 UNS C95600 |
17 | Handwheel | A197 | A197 | A197 | A197 |
18 | Handwheel Nut | A108 GR 1020 | A182 GR F304 | A108 GR 1020 | A108 GR F304 |
| BS Cast Steel Globe Valve Technical Specification |
| Design Standard | BS1873 ASME B16.34 | ||||||
| Pressure-Temperature Rating | ASME B16.34 | ||||||
| Face-Face | ASME B16.10 | ||||||
| Flange Ends | ASME B16.5 | ||||||
| Buttwelding Ends | ASMe 16.25 | ||||||
| Inspection & Test | API598 | ||||||
| Norminal Pressure(Class) | 150 | 300 | 400 | 600 | 900 | 1500 | |
| (Mpa) TestPressure | Shell Test | 2.93 | 7.55 | 10.0 | 15.0 | 22.5 | 37.5 |
| High Pressure Seal Test | 2.07 | 5.52 | 7.31 | 11.03 | 16.5 | 27.5 | |
| Low Pressure Seal Test | 0.6 | ||||||
| Applicable Temperature | -196?~550? | ||||||
| Applicable Medium | Water,oil,gas and other causticity meduium(Different raw material for different medium | ||||||

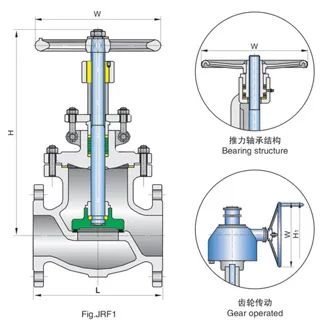

Main Dimensions & Weight
Pressure | Size | Main Dimension | (N.m)Toqure | Cv | ||||||||
mm | in | LRF | LBW | LRJ | H | H1 | W | RF | BW | |||
Class150 | 40 | 11/2 | 165 | 165 | 178 | 298 | - | 200 | 14 | 11 | 16 | - |
50 | 2 | 203 | 203 | 216 | 343 | - | 200 | 23 | 19 | 19 | - | |
65 | 21/2 | 216 | 216 | 229 | 365 | - | 250 | 32 | 25 | 29 | - | |
80 | 3 | 241 | 241 | 254 | 375 | - | 250 | 38 | 31 | 45 | 100 | |
100 | 4 | 292 | 292 | 305 | 448 | - | 250 | 63 | 53 | 67 | 185 | |
150 | 6 | 406 | 406 | 419 | 584 | - | 350 | 108 | 90 | 129 | 440 | |
200 | 8 | 495 | 495 | 508 | 660 | - | 450 | 186 | 164 | 245 | 810 | |
250 | 10 | 622 | 622 | 635 | 683 | - | 450 | 271 | 239 | 385 | 1260 | |
300 | 12 | 698 | 698 | 711 | 794 | - | 610 | 374 | 326 | 601 | 1890 | |
350 | 14 | 787 | 787 | 800 | 889 | - | 610 | 610 | - | 649 | 2441 | |
400 | 16 | 914 | 914 | 927 | - | 977 | 720 | 880 | - | - | 3234 | |
450 | 18 | 977 | 977 | - | - | 1066 | 720 | 1150 | - | - | 4308 | |
500 | 20 | 977 | 977 | - | - | 1117 | 720 | 1650 | - | - | 5364 | |
600 | 24 | 1295 | 1295 | - | - | 1295 | 850 | 2200 | - | - | 7825 | |
Class 300 | 40 | 11/2 | 229 | 229 | 241 | 365 | - | 200 | 27 | 21 | 24 | - |
50 | 2 | 267 | 267 | 283 | 4356 | - | 200 | 36 | 30 | 30 | - | |
65 | 21/2 | 292 | 292 | 308 | 476 | - | 250 | 47 | 39 | 51 | - | |
80 | 3 | 318 | 318 | 333 | 479 | - | 250 | 62 | 50 | 84 | 100 | |
100 | 4 | 356 | 356 | 371 | 581 | - | 350 | 102 | 83 | 145 | 185 | |
150 | 6 | 444 | 444 | 460 | 657 | - | 450 | 176 | 146 | 319 | 440 | |
200 | 8 | 559 | 559 | 575 | 724 | - | 450 | 288 | 244 | 617 | 810 | |
250 | 10 | 622 | 622 | 638 | 800 | - | 860 | 770 | 669 | 1988 | 1260 | |
300 | 12 | 711 | 711 | 727 | 900 | - | 860 | 770 | 669 | 1988 | 1890 | |
350 | 14 | 838 | 838 | - | 1092 | - | 860 | 876 | - | - | 2441 | |
400 | 16 | 863 | 863 | - | - | 1371 | 610 | 1200 | - | - | 3234 | |
450 | 18 | 977 | 977 | - | - | 1473 | 610 | 1600 | - | - | 4183 | |
500 | 20 | 1016 | 1016 | - | - | 1574 | 720 | 2100 | - | - | 5226 | |
600 | 24 | 1346 | 1346 | - | - | 1803 | 720 | 3150 | - | - | 7657 | |
