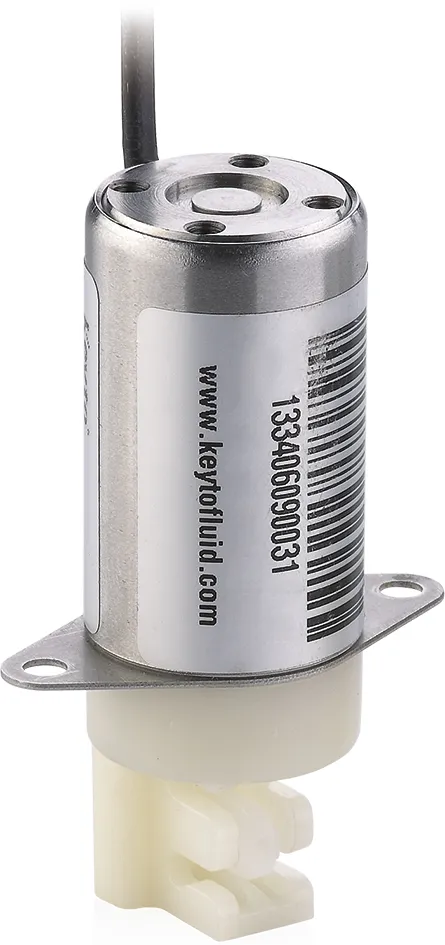

China Double Channel Pinch Valve for Medical/Pharmaceutical/Laboratory Application

Product Description

1. Product Overview

The solenoid valve of 1213 series is a family of dual channel pinch valves. This

series solenoid valve is a high performance, low cost and maintenance free pinch valve

with multiple model options, controlling the switch of flow path for different types of tube.

The life cycle of valves can be operated more than 2 million.The tubing of solenoid valve

is simple and easy to clean, applying to the application that samples are with impurities

and particulate matters and can avoid cross-contamination among samples.

1.1.Characteristics Of 1213 Series

Silicon tube specification: 1.5mm X 3mm; shore hardness: 60

Flow capacity of 1.5mmX3mm silicon tube: CV≥0.05, flow≥5.0mL/s(differential

pressure 50KPa, 25ºC, pure water)

Wetted material depends on the silicon tube;

Long lifetime, high performance.

Response time (T)

Input air/water at 0.25MPa and maximum working pressure drop from inlet port, input

rated control electrical signal to make the tested solenoid valve open and close, then we'll

get the change of outlet pressure which we can measure from pressure sensor. At the

same time, we'll get the lapse of time which starts from power on/off to rise to 90% of max

pressure (normally closed valve) and drop to 10% of max pressure (normally open valve)

by quick response time measure devise. Repeatedly test several times and take the

average valve as the power on response time and the power off response time.

As engineering experience, it is the design critical value that response time above

50ms. The aspiration of valve may not stable. Therefore, the response time is not beyond

50ms within nominal lifetime.

In addition, there is a response time at current method in this industry. The change of

circuit leads to current change, according to the action of solenoid valve. The response

time T1, T2 at current method is normally less than the response time(T) which measured

by air flow method.

Shut off pressure

When the normally open solenoid valve is powered on, pinch connection is suitable

for silicon tube with dimension 1.5x3.0mm, shore hardness 60. One side of tube is under

1.2 times nominal pressure water (5ºC~40ºC), and holding for one minute, the other side

should no liquid leakage.

When the normally closed solenoid valve is powered off, pinch connection is pinch

connection is suitable for silicon tube with dimension 1.5x3.0mm, shore hardness 60. One

side of tube is under 1.2 times nominal pressure water (5ºC~40ºC), and holding for one

minute, the other side should no liquid leakage.

Specification:

Model	1213-32-D1C/5N Double Channel Pinch Valve
Interface method	bottom / bracket mounting
Outline dimension	60.7 * Φ22 mm
Orifice diameter	1.5 mm
Tube specification	1.5 * 3 mm / 1.6 * 3.2 mm
Recommend tube hardness	Shore hardness: 60
Power consumption	12V / 24V: 3.5W
Withstand pressure	-70 kPa ~ 200 kPa
Remark	If for single channel application, a small length of tube is clamped to the upper channel at the same time, using to support activating or withstanding pressure
