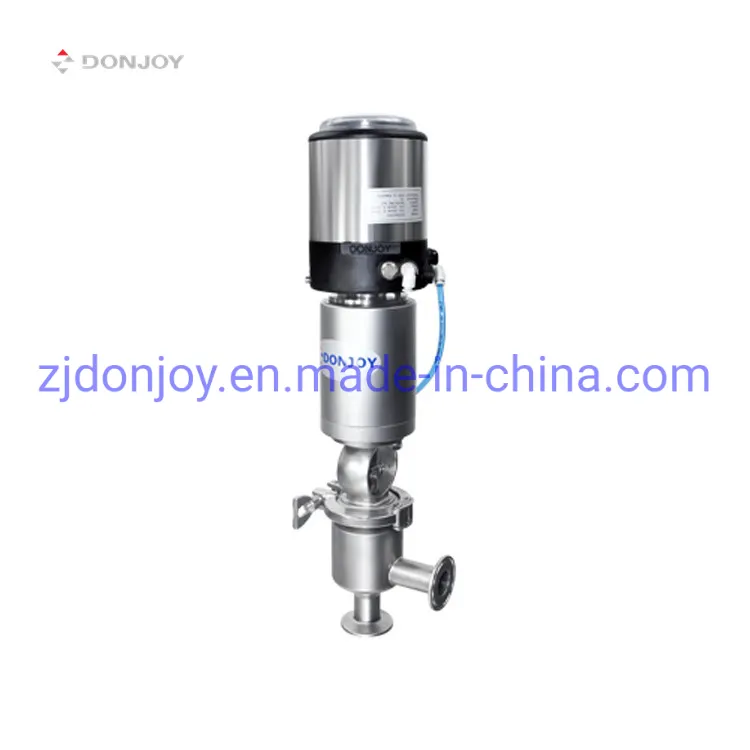

Stainless Steel Divert Seat Valve Clamped with C-Top 1721
Stainless Steel Divert Seat Valve Clamped With C-top 1721INTRODUCTION:Donjoy is specialized in manufacturing and exporting valve, pump, fitting for over 20 years, with good quality and pretty competitive price.Products are with 3A, CE, FDA cetification and production management is according to ISO9......
Send Inquiry
Product Description

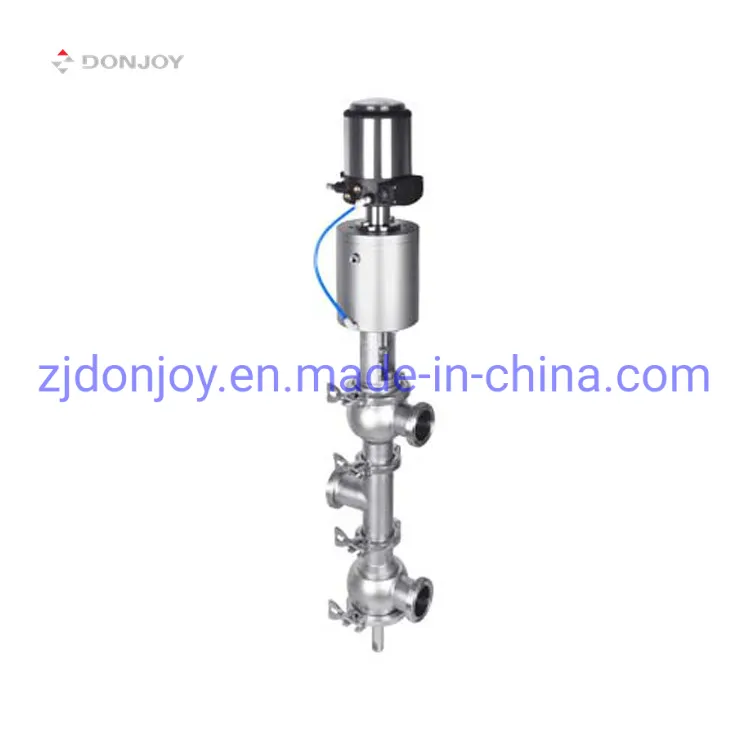

Stainless Steel Divert Seat Valve Clamped With C-top 1721
★★INTRODUCTION:
Donjoy is specialized in manufacturing and exporting valve, pump, fitting for over 20 years, with good quality and pretty competitive price.
Products are with 3A, CE, FDA cetification and production management is according to ISO9001-2008.
★★APPLICATION & OPERATION:
The divert seat valve is applied to food-processing industry, beverage, pharmaceutical and fine chemicals etc.
Seat valves are operated automatically by a single-acting or a double-acting pneumatic actuator, by supplying compressed air,
the shaft is moved to place the valve in the "open" or "close" position.
The 180° rotation of the pneumatic cyliner to reach interchange or normally opened and normally closed.
★★SPECIFICATION:
★★INTRODUCTION:
Donjoy is specialized in manufacturing and exporting valve, pump, fitting for over 20 years, with good quality and pretty competitive price.
Products are with 3A, CE, FDA cetification and production management is according to ISO9001-2008.
★★APPLICATION & OPERATION:
The divert seat valve is applied to food-processing industry, beverage, pharmaceutical and fine chemicals etc.
Seat valves are operated automatically by a single-acting or a double-acting pneumatic actuator, by supplying compressed air,
the shaft is moved to place the valve in the "open" or "close" position.
The 180° rotation of the pneumatic cyliner to reach interchange or normally opened and normally closed.
★★SPECIFICATION:
| Item | Stainless Steel Pneumatic Divert Seat Reversing Valve |
| Size | DN25-DN100,1"-4" |
| Working temperature | -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min) |
| Working pressure | 10 bar, 145 psi |
| Compressed air pressure | 5.0-7.0 bar |
| Air connection | G1/8" (BSP) |
| Internal surface finish | Ra<0.8um |
| External surface finish | Sandbalst or mirror polish |
| Material | AISI316L/AISI304 |
| Gasket (standard) | EPDM in compliance with FDA 177.2600 |
| Gasket (option) | FPM in compliance with FDA 177.2600 |
| Connections | DIN, SMS, RJT, IDF |
| Normal pneumatic operation | Single acting pneumatic actuator |
| Optional pneumatic operation | Double acting pneumatic actuator |

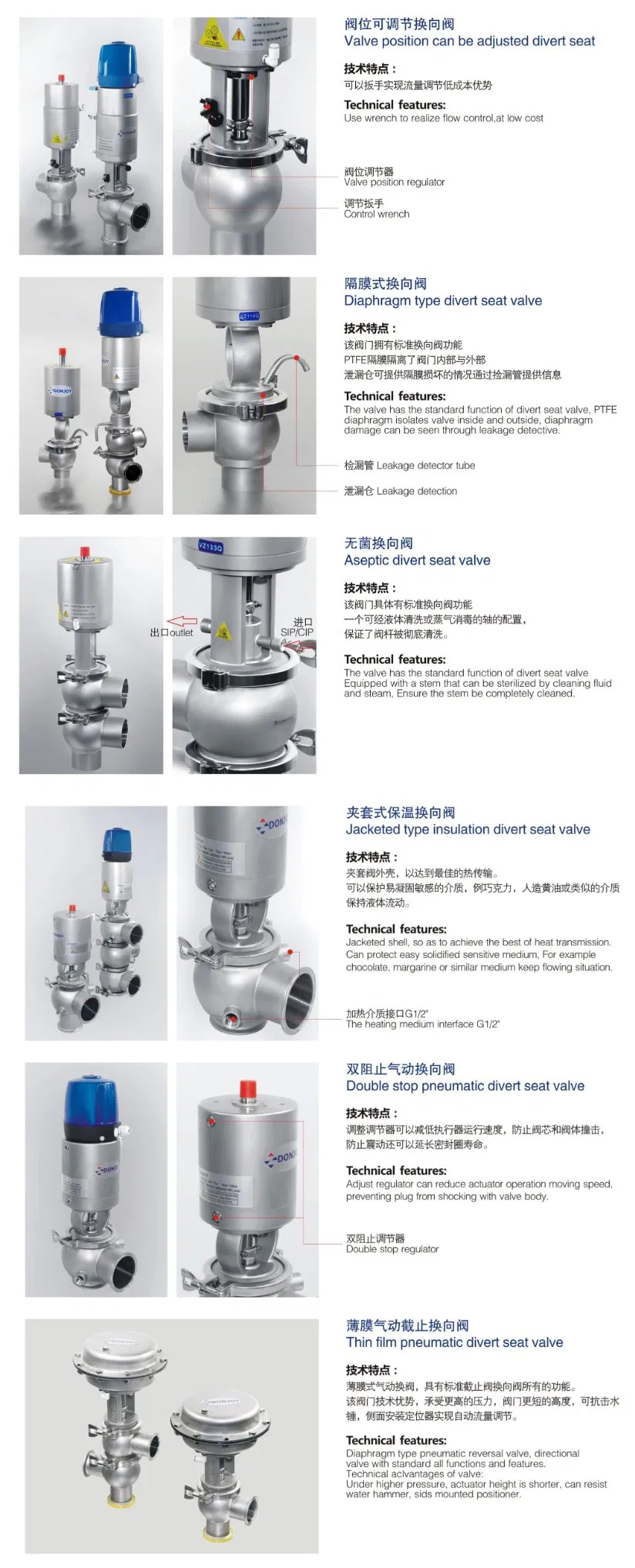

| Option 2 | External position sensor |
| Option 3 | Steam barrier (if shaft sterilisation is required) |
| Option 4 | Body jacket insulation |
| Option 5 | Valve position regulator |
| Option 6 | Double stop actuator |
| Option 7 | Diaphragm type valve cavity |

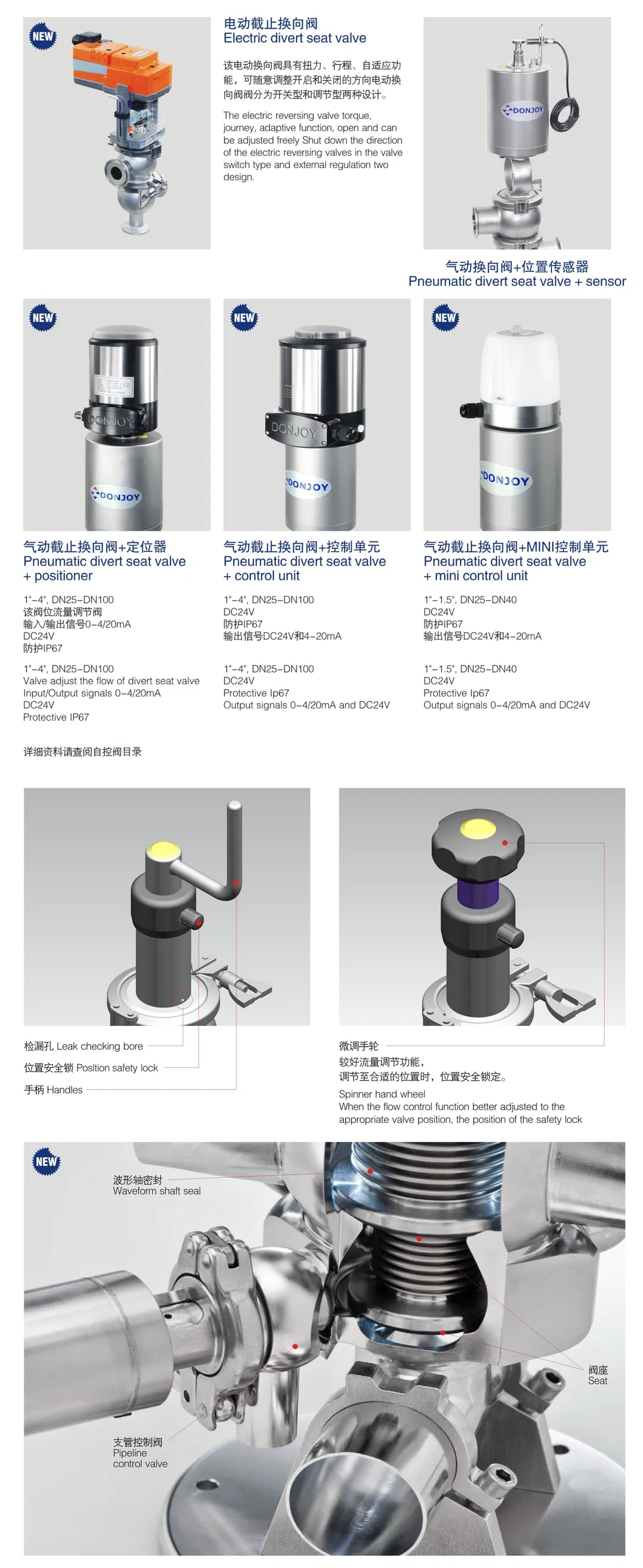

| Option 8 | C-TOP control unit. |
