Product Description

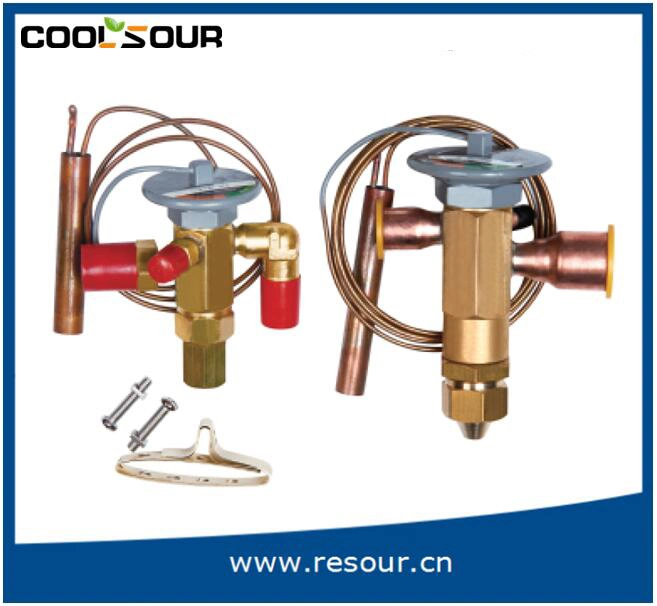

Expansion Valve (Sporlan Type )
Feature:
1.Sporlan Type series expansion valve widely applied into air-conditioner and various refrigerating devices;
2.Adopting design with huge & flat stainless steel diaphragm and seat supported by valve needle,to make needle matched with valve port accurately,and get best tightness;
3.Both of welded tube and valve body adopt high strength silver welding which can further avoid body leakage;
4.It can provide best performance for air-conditioner and various of refrigerating equipment;
5.Max.testing pressure: 36bar;
6.Allow working pressure: 28bar;

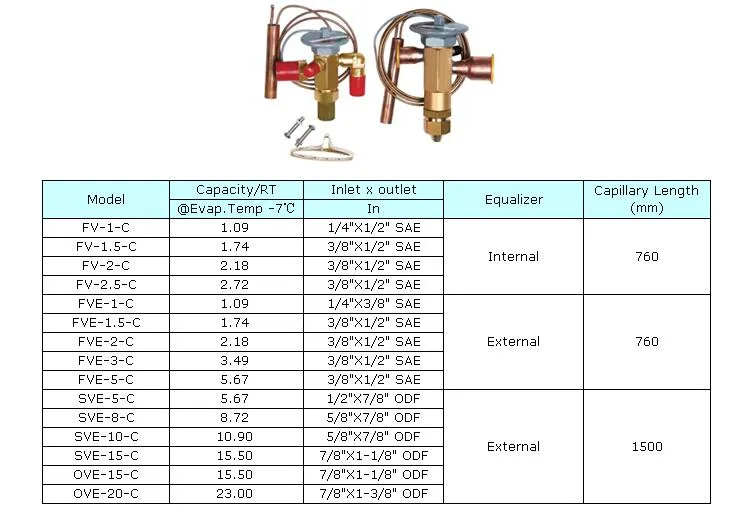

Sporlan Type Refrigerant Expansion Valve for Air Conditioner Fve-1-C Fve-1-Cp100

Sporlan Type Refrigerant Expansion Valve for Air Conditioner Fve-1-C Fve-1-Cp100

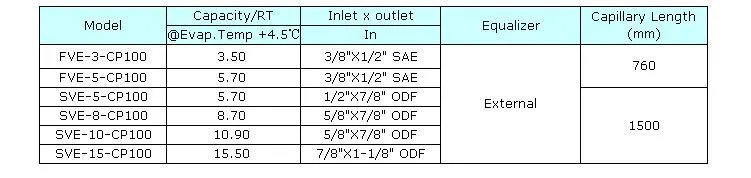

CP100 series Applied into Air-conditioner, Evaporating temperatue range: -25ºC~+10ºC
Sporlan Type Refrigerant Expansion Valve for Air Conditioner Fve-1-C Fve-1-Cp100

Remark:
1.Capacity on base of Liquid temperature 38ºC, Work with refrigerant R22;
2.Equalizer connector size are 1/4" SAE.

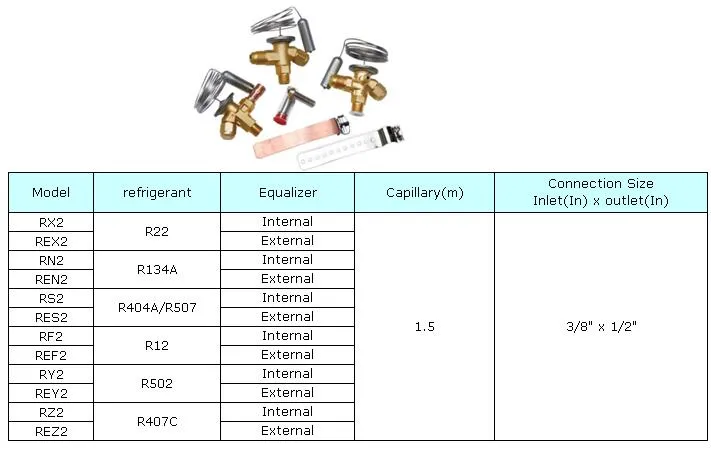

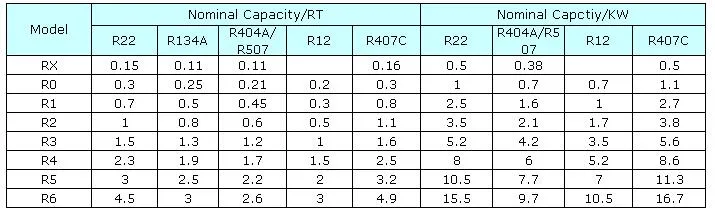

Expansion Valve
Feature:
1.Wide range of evaporation temperature;
2.Interchangeable orifice;
3.Orifice can be chose according to refrigerant and capacity;
4.Max.testing pressure: 36bar;
5.Allow working pressure: 28bar;
6.Suit to refrigerant: R12,R22,R134A,R404A,R507A,R407C,R502.
Sporlan Type Refrigerant Expansion Valve for Air Conditioner Fve-1-C Fve-1-Cp100
