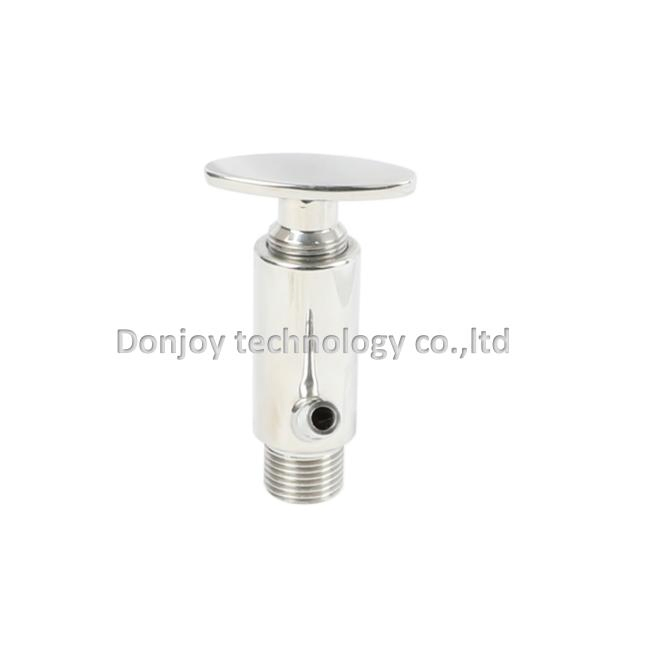

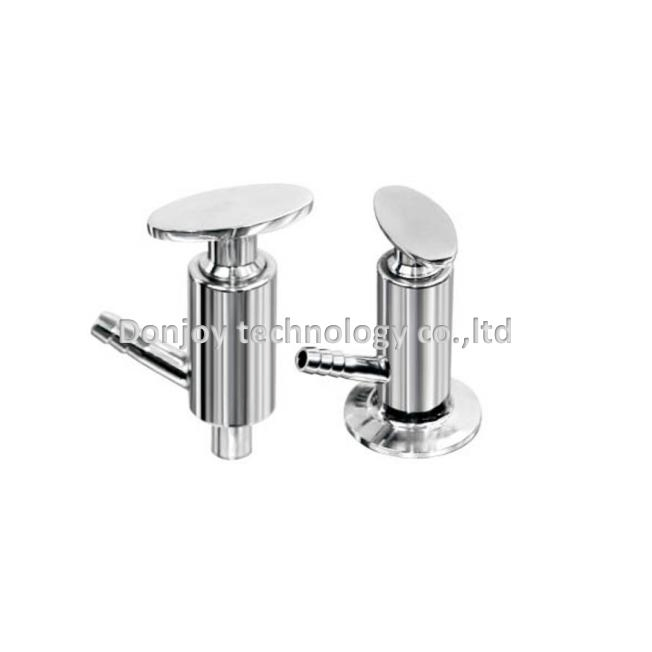

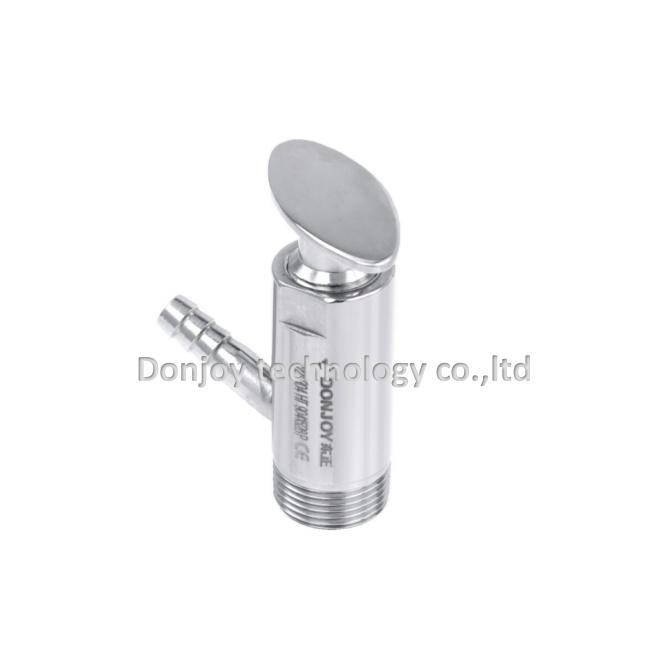

Stainless Steel Sampling Valve with Elliptic Type Handle

Product Description

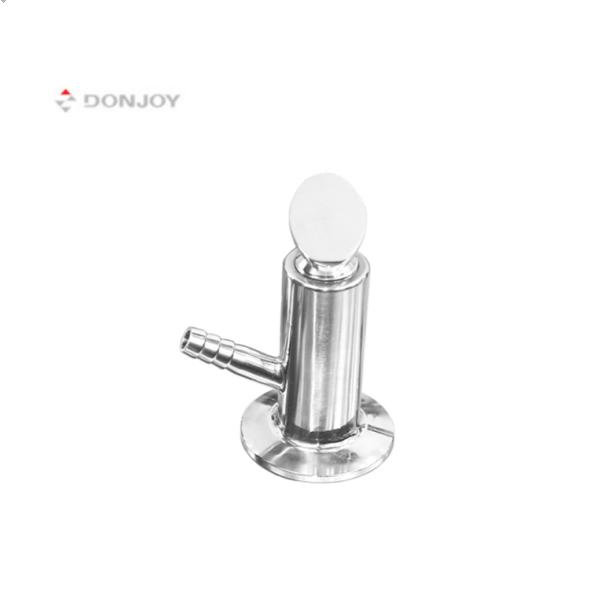

Sanitary Stainless Clamped Sample Valve with Elliptic Handwheel

Specification:

Product Name:	Sanitary Stainless Elliptic Sample Valve Clamped Connection
Material:	AISI304, AISI316L
Size:	12.7mm,1/2",3/8",1/2",3/4"
Type:	Manual
Gasket:	EPDM,PTFE
Working Pressure:	6 bar
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded,Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

This type of check valves are used to stainless steel pipe system, in order to prevent the fouid flowing back.

Work Principle:
Check valve is a type of valve which open or close the valve disc rely on the medium flow itself. The check valve disc will open when the pressure of stem bottom exceed the stem above and the spring. The check valve disc will close when the two pressure are equalled. So that the flow goes one way in the pipeline, and prevent the fluid flowingback, avoid the accidents.
Various standards of valves can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc.

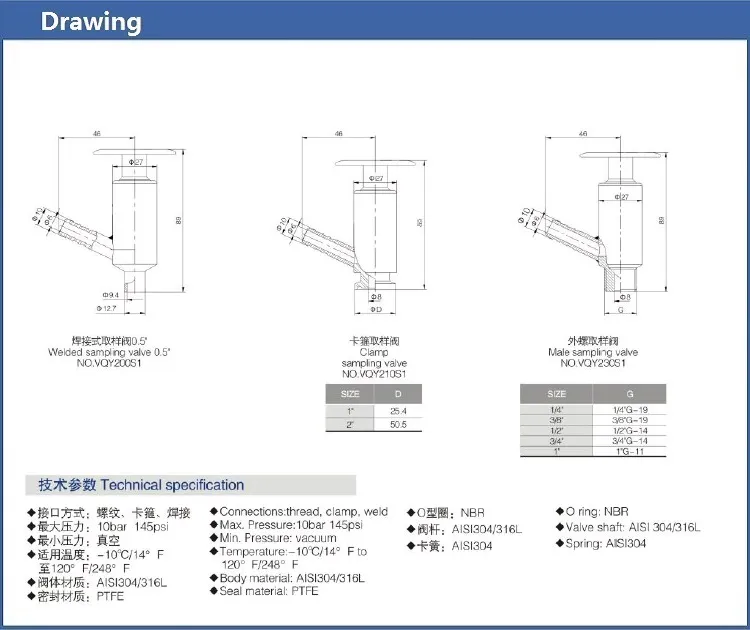

Technical Data:
Materal:
1. Contact with the product components-304/304L/316L, Forging
2. Materal No contact with the product components-304

Sealing material:
1. Standard-EPDM(Working Temperature: -20~+135° C)
2. Option- SILICONE ( Working Temperature: -50+180° C)
VITON ( Working Temperature: -30+230° C)

Surface treatment:
1. Inside surface treatment (Ra≥ 0.4~0.8um)
2. Surface treatment (Ra≥ 0.8~1.6um)
