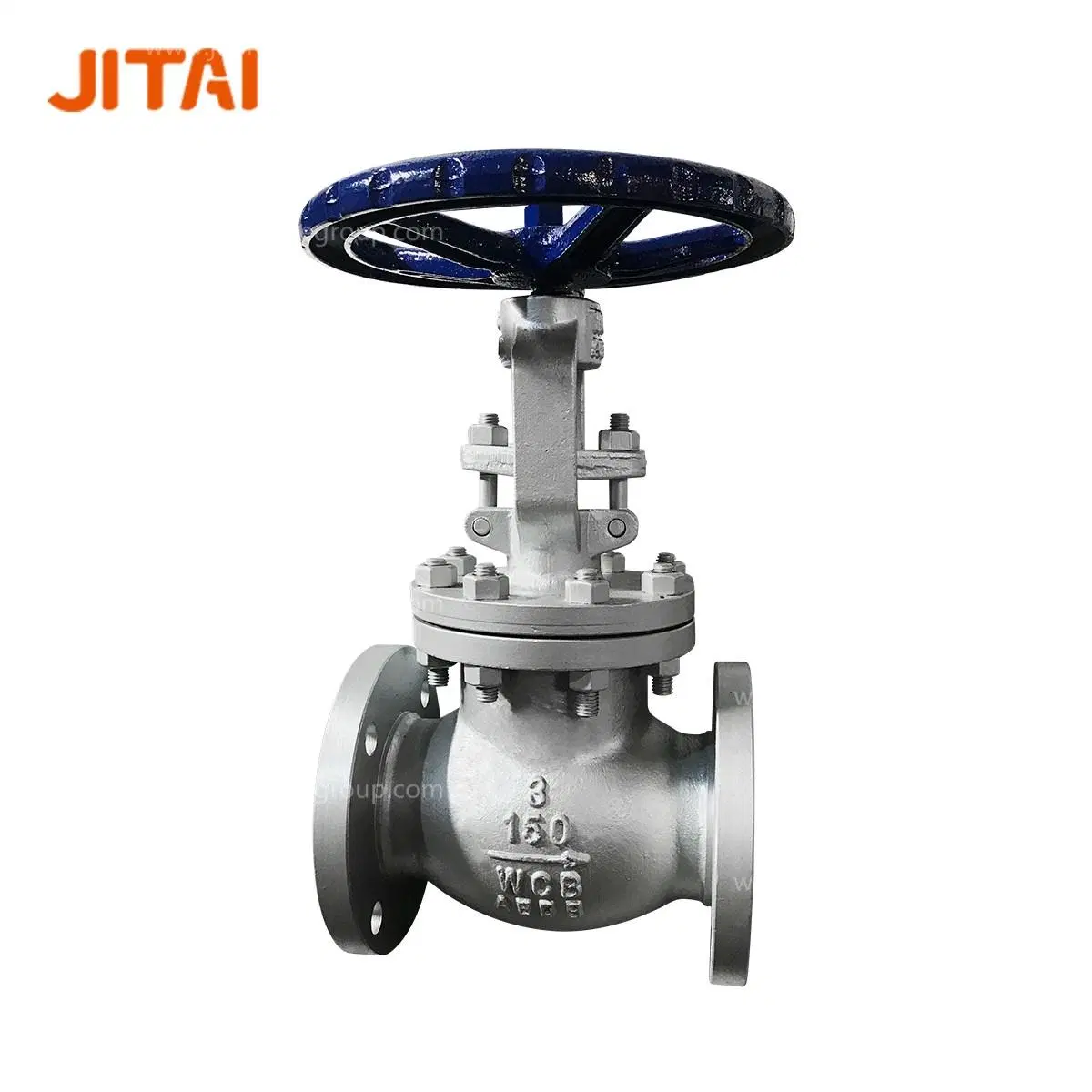

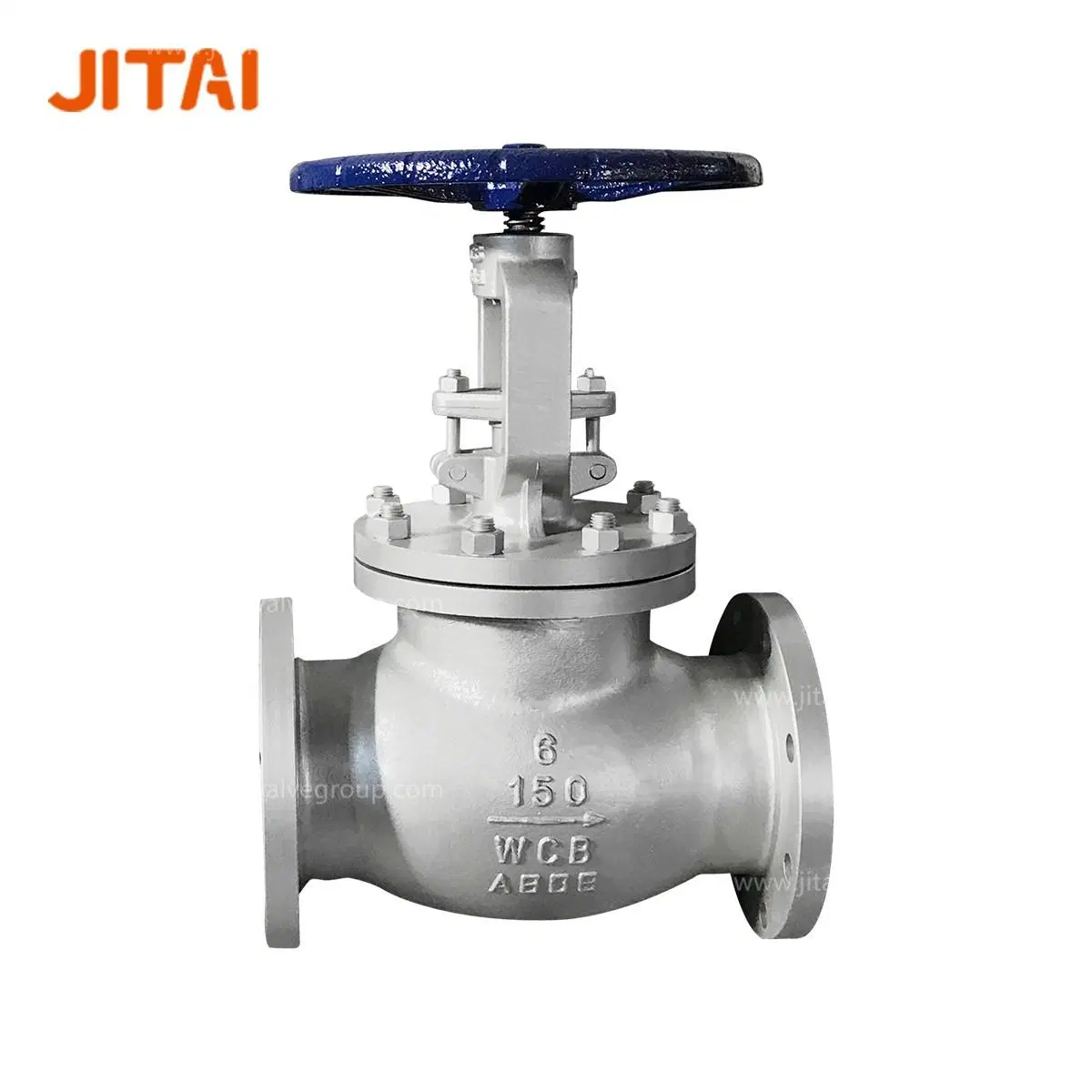

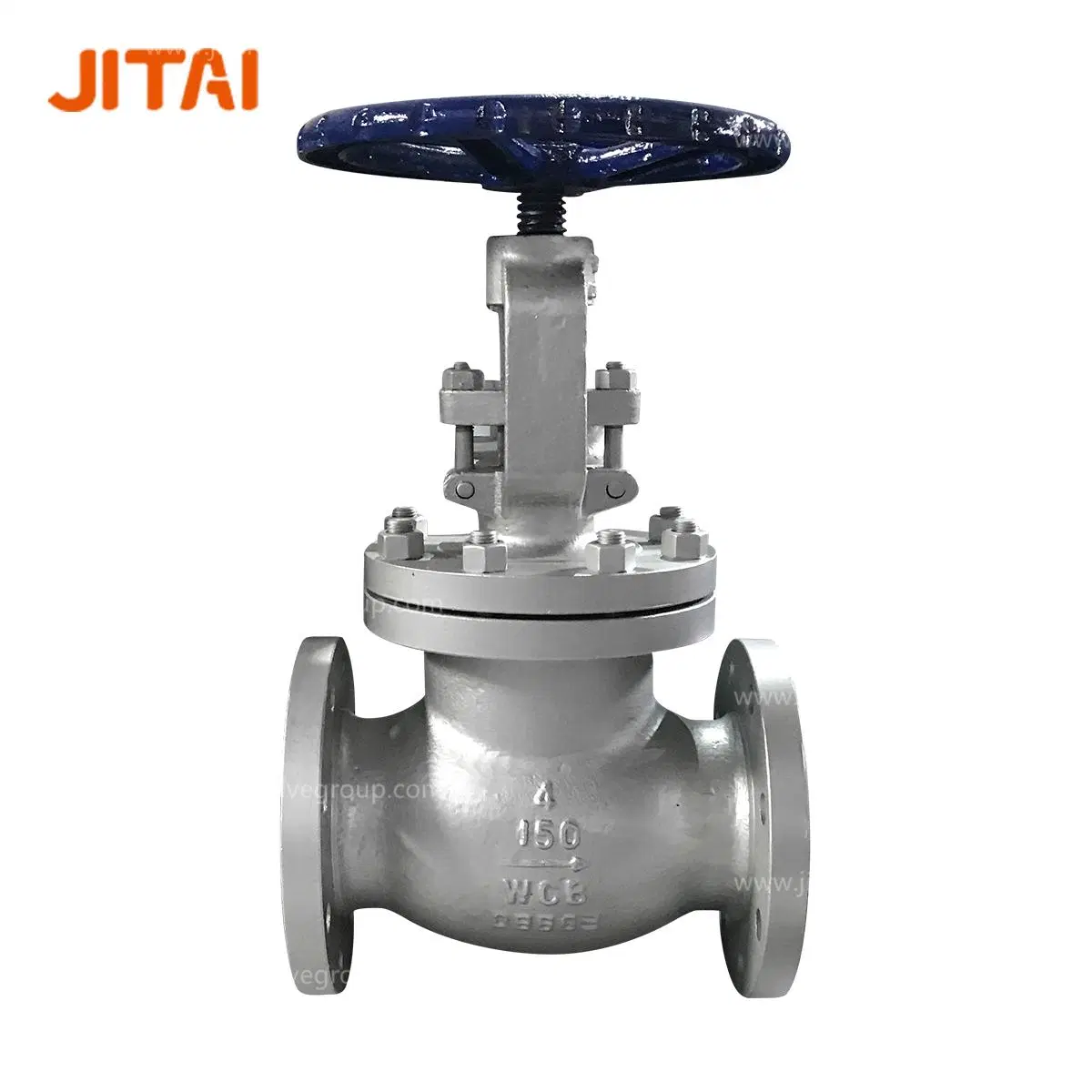

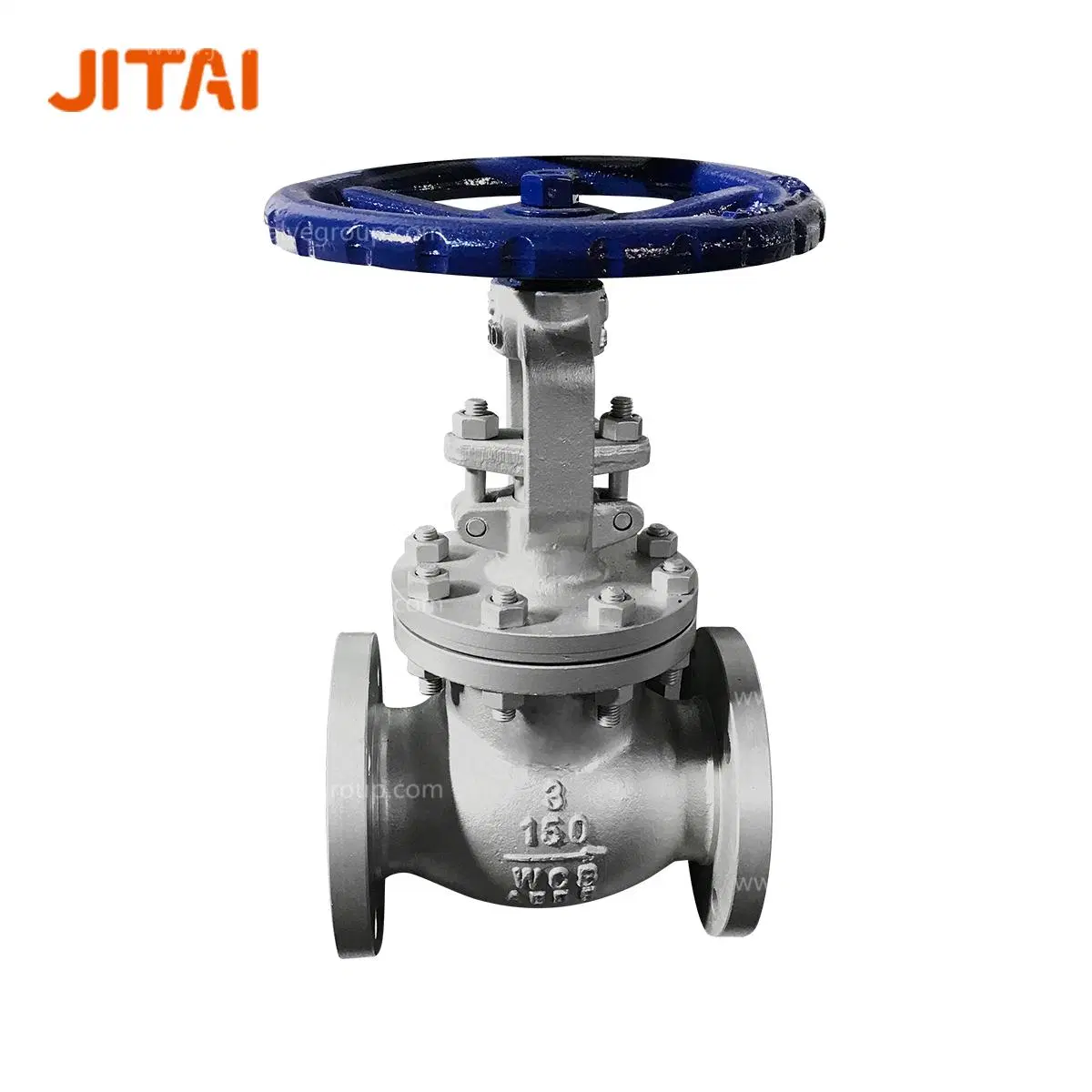

4′ ′ T Type API 623 Bolted Bonnet Carbon Steel Stop Valve
Product DescriptionIntroductionThe opening and closing part of the globe valve, or stop valve, is a plug-shaped disc with a flat surface or a cone on the sealing surface, and the disc moves linearly along the center line of the valve seat. It can be used to control various types of fluids such as ai......
Send Inquiry
Product Description
Introduction
The opening and closing part of the globe valve, or stop valve, is a plug-shaped disc with a flat surface or a cone on the sealing surface, and the disc moves linearly along the center line of the valve seat. It can be used to control various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal, and radioactive media.
Features
1.OS &Y, bolted bonnet or pressures seal;
2.Reliable cut-off and throttling function;
3.Flow adjustment

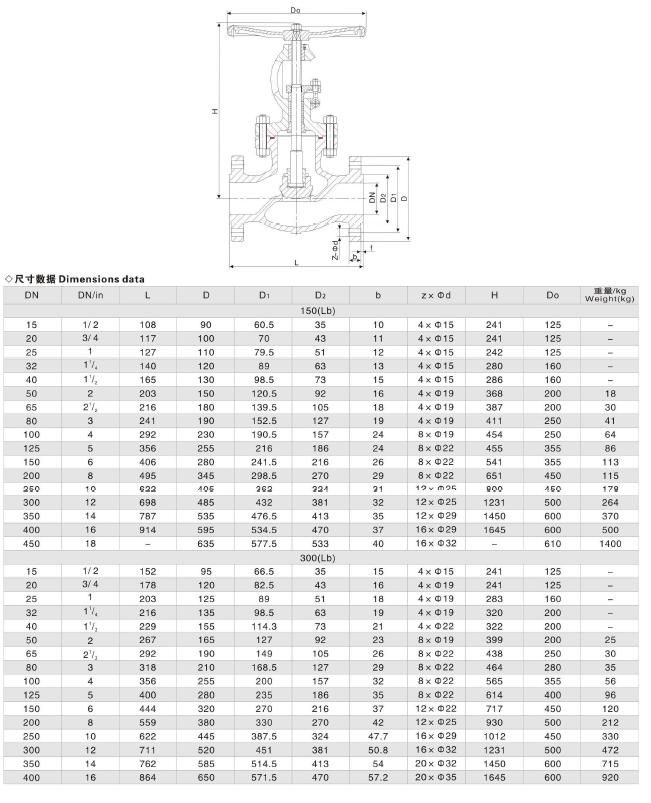

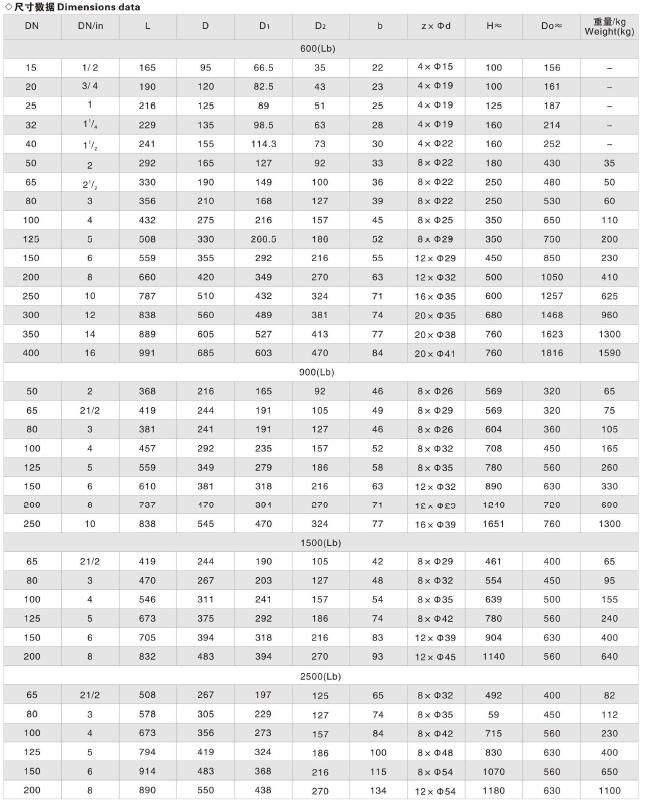

| Nominal size | 2"~48"(DN50~DN1200) |
| Nominal pressure | Class150~2500(PN10~PN420) |
| Standard: | BS1873, ASME B16.34 |
| Body material | WCB, WC6, WC9, LCB, LCC, C5,C12, CF8, CF8M, CF8C, bronze, Inconel, monel |
| End connection | RF, BW, RTJ, |
| Operation | handwheel, bevel gear, Pneumatic, Electric, Hydraulic |
Jitai Valve Group is a genuine valve manufacturer.
- 7000-sqm factory
- 100 employees
- 5+ senior engineers
- 30+ design patents
- 2 million sets of valves delivered
- 20 million USD annual revenue
- Gate valves
- Globe valves
- Check valves
- Ball valves
- Butterfly valves
- API valves
- Steam valves
- High pressure valves
- High temperature valves
- Power Plant valves
- Heavy-duty valve expert with proven expertise in harsh environment;
- Stringent quality control and traceable reports to provide zero-defect products;
- Rugged and durable configuration according to API, ASME, BS, JIS, EN standards;
- All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components;
1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.
2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.
3.Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc
4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.
5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.
6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.
7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
