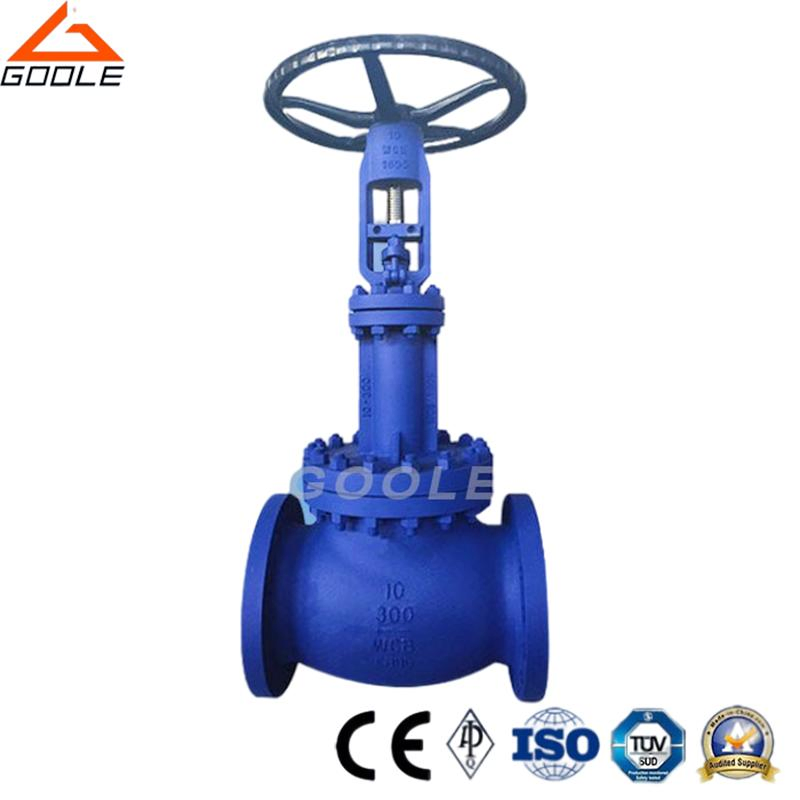

ANSI/JIS Long Stem Bellow Seal Globe Valve (GWJ41H)

Product Description

Structural Features:

Construction:  BB-BG-OS&Y
Operation:  Manual, Pneumatic
Design Standard: API6D API600
Face to Face Dimension: ASME B16.10
Flange Ends: ASME B16.5
Test & Inspection:  API 598

Technical Specifications:

Pressure Rating: Class: 150lb-900lb
Specification: 1/2"-14"
Material: WCB,CF8,CF3
Standard flanges: ANSI

PN (MPa)	Shell Test (MPa)	Sealing Test (MPa)	Suitable Temp (ºC)	Suitable Medium
150	3.0	2.2	-20ºC-350ºC	Water, Steam, Oil, Etc.
300	7.5	5.5
600	15	11

ANSI/JIS Long Stem Bellow Seal Globe Valve (GWJ41H)

Main Parts Materials:

NO.	PART NAME	MATERIAL
1	Body	GS-C25, CF8, CF3
2	Disc	2Cr13, F304, F316
3	Hinge Pin	F304, F316
4	Bellows combination	F304, F316
5	Bonnet	GS-C25, CF8, CF3
6	Packing	Flexible graphite, PTFE
7	Gland	25#, F304, F316
8	Locator	25#, F304, F316
9	Stem Nut	ZQA19-4
10	Hand wheel	Carbon Steel
11	Cap	25#
12	Oil Nozzle	Brass
13	Hexagon Nut	ASTM A193 2H, A193-8, A193-8M
14	Bolt	ASTM A193 B7, A193-B8, A193-B8M
15	Gasket	Flexible graphite+S.S. PTFE
16	Stem	2Cr13, F304, F316

Main Dimension:

PN	PN16
DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	200	310	350	400	480	600	730	850
H	195	195	207	218	225	230	272	290	355	410	425	540	665	720
W	120	120	140	140	160	180	180	200	250	300	300	100	520	520
Wt.(kg)	4	4.5	5	7	9	12	18.5	23	38.5	56	75	113.5	235	395
H	7	7	12	13	14	15	19	23	28	35	42	52	64	75
kv	4.2	7.4	12	19	30	47	77	120	188	288	410	725	1145	1635

PN	PN25
DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	200	310	350	400	480	600	730	850
H	195	195	207	218	225	230	272	290	355	410	425	540	665	720
W	120	120	140	140	160	180	180	200	250	300	300	100	520	520
Wt.(kg)	4	4.5	5	7	9	12	18.5	23	38.5	56	75	113.5	235	395
H	7	7	12	13	14	15	19	23	28	35	42	52	64	75
kv	4.2	7.4	12	19	30	47	77	120	188	288	410	725	1145	1635

PN	PN40
DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	200	310	350	400	480	600	730	850
H	195	195	207	218	225	230	272	290	355	410	425	540	665	720
W	120	120	140	140	160	180	180	200	250	300	300	100	520	520
Wt.(kg)	4	4.5	5	7	9	12	18.5	23	38.5	56	75	113.5	235	395
H	7	7	12	13	14	15	19	23	28	35	42	52	64	75
kv	4.2	7.4	12	19	30	47	77	120	188	288	410	725	1145	1635

Application.

ANSIStandard Bellow Sealed globe valve ( Os & Y Type ) is applied to various kinds of working conditions of pipelines such as petroleum, chemical industry, pharmacy, fertilizer, and power industry, etc, under nominal pressure in the PN1.6-40 MPa and operating temperature at -20 - 350ºC, that is used to cut off or connected to the pipeline medium.
