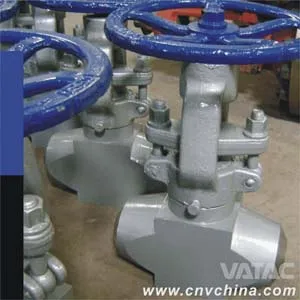

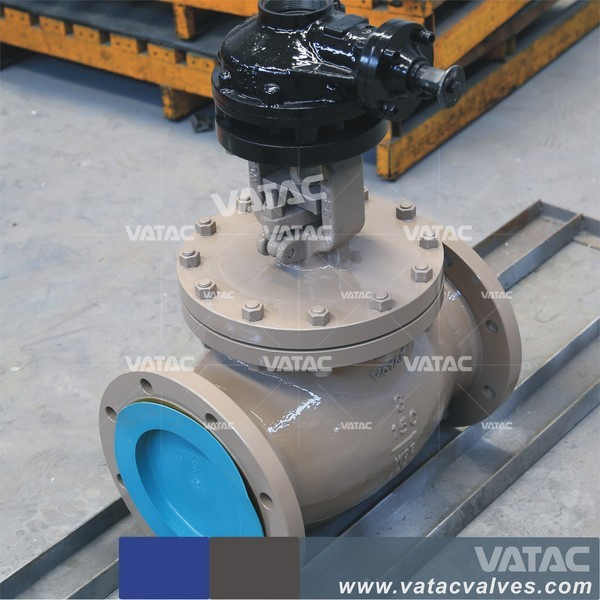

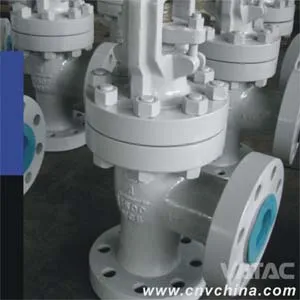

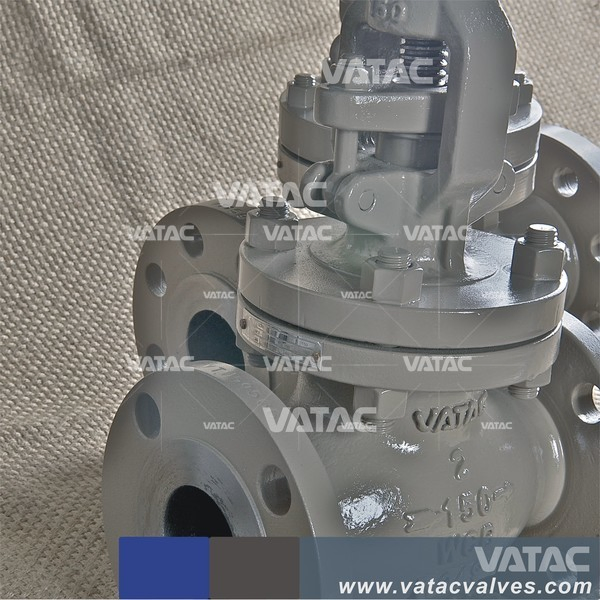

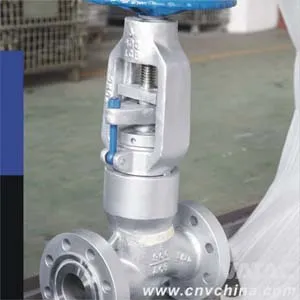

Cast & Forged Steel Globe Valve (J41)
Cast & Forged Steel Globe Valve(J41)Available in DIN, ANSI, JIS and BS StandardsAvailable in both OS&Y, Bolted bonnet and NRS (Non-rising Stem) constructionsFeatures& SpecificationsDesign & Manufacture: API, DIN, EN STD.Constructions: OS&Y Construction, Bolted Bonnet, Welded Bonn......
Send Inquiry
Product Description
Available in DIN, ANSI, JIS and BS Standards
Available in both OS&Y, Bolted bonnet and NRS (Non-rising Stem) constructions
Features& Specifications
Design & Manufacture: API, DIN, EN STD.
Constructions: OS&Y Construction, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet
Back-seating, Renewable Seat Ring
Full Port / Conventional Port
Size Range: 2" to 14"N. B.
Pressure Ratings: ANSI 800, 900, 1500 & 2500
End Connections: Threaded, Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.
Materials Available in: A105, F304, F316 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
Actuations: Manual
To MR 0175 and MR 103 upon request
Available in DIN, ANSI, JIS and BS Standards
Available in both OS&Y, Bolted bonnet and NRS (Non-rising Stem) constructions
Features& Specifications
Design & Manufacture: API, DIN, EN STD.
Constructions: OS&Y Construction, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet
Back-seating, Renewable Seat Ring
Full Port / Conventional Port
Size Range: 2" to 14"N. B.
Pressure Ratings: ANSI 800, 900, 1500 & 2500
End Connections: Threaded, Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.
Materials Available in: A105, F304, F316 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
Actuations: Manual
To MR 0175 and MR 103 upon request
| DESGN & MFT. | BS 1873 | ENDS CONNECTION | FLG. R.F |
| PRE-TEP. RATING | -- | INSPECT & TEST | API 598 |
| F-F DIMENSION | ANSI B16.10 | END CONNECTION | ANSI B16.5 |
| MARKING | MSS SP-25 | FIRE SAFE DESIGN | -- |
| PAITING | TBA | SPE. REQUIREMENTS | N.A |
