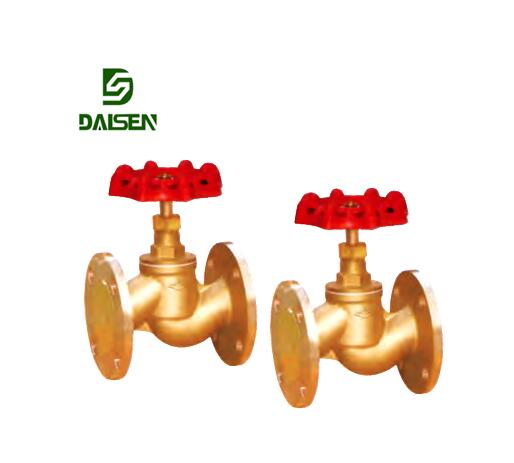

China Flanged End Brass Stop Valve J41W-16t

Product Description

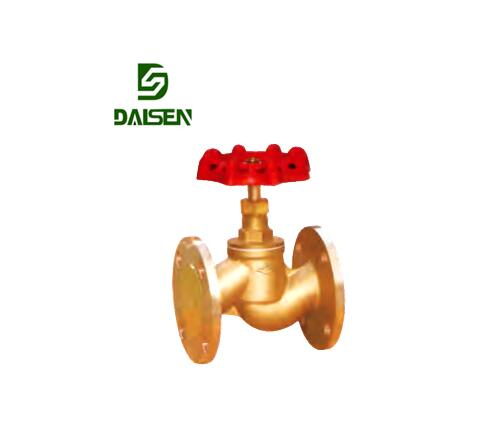

Product Name: Brass Flanged Stop Valve
Item No.: J41W-16T
Technical specifications:
1. Nominal Pressure: 1.6MPa
2. Suitable Medium: Water, Oil, Gas
3. Suitable Temperature: -20ºC ≤ t ≤ 150ºC
4. Flange Standard: GB9113
Usage: This series of valve is suitable for working medium for water, oil, gas etc.

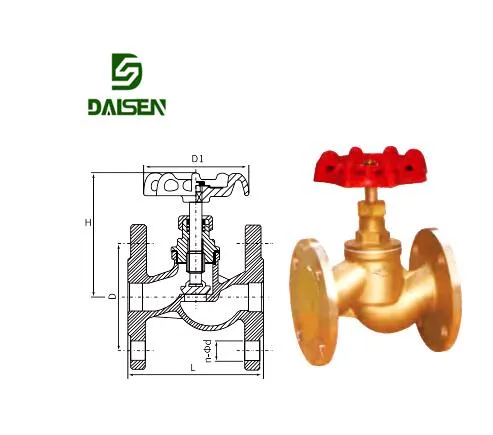

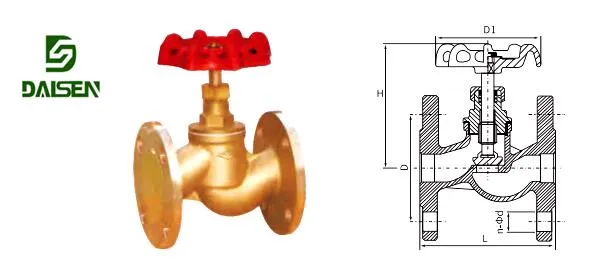

Outline and Connecting Measurement

DN	SIZE	L	H	D	D1	n-Φd
15	1/2"	79	81	65	78	4-Φ14
20	3/4"	89	85	75	78	4-Φ14
25	1"	93	98	85	78	4-Φ14
32	1 1/4"	110	125	100	108	4-Φ18
40	1 1/2"	132	173	125	143	4-Φ18
50	2"	172	173	125	143	4-Φ18
65	2 1/2"	198	190	145	143	4-Φ18

Product main features

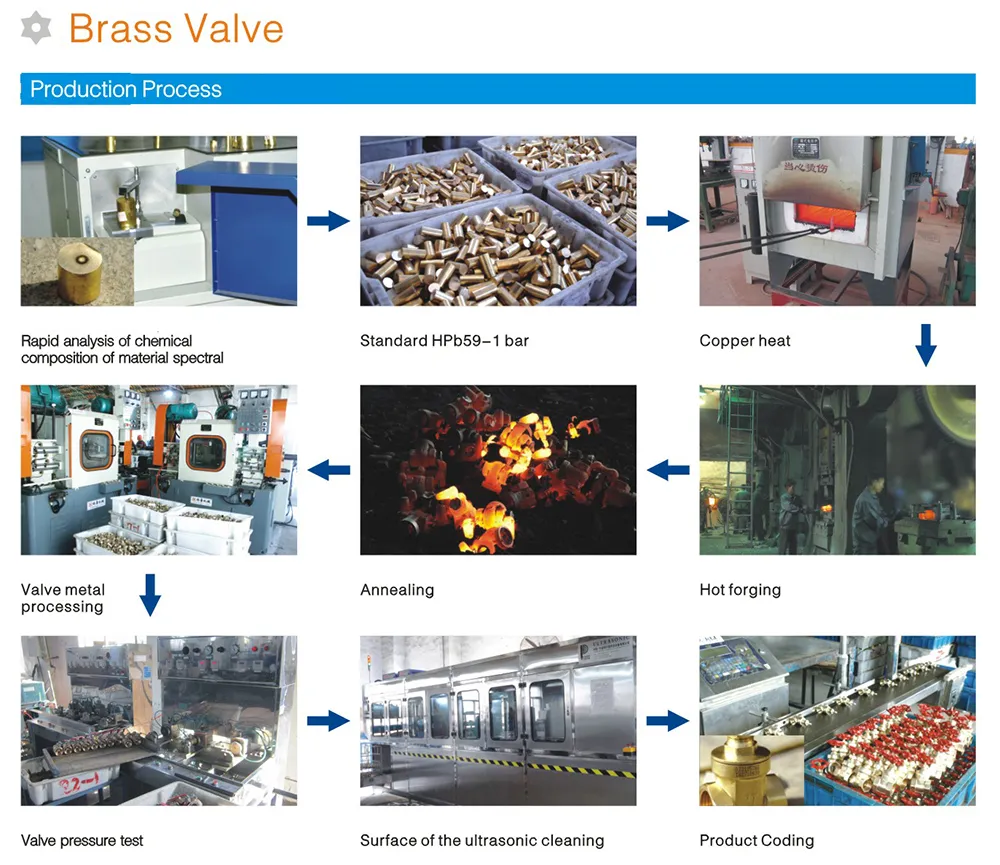

1, Raw materials, reliable, all standard Hpb59- 1 extruded bar, imported from Italy into the plant spectrometer analysis of the quantitativecomponent, to ensure that the material composition and performance indicators.
2, Advanced processing technology: the use of medium frequency induction heating, die forging process and the full line of CNCautomated processing.
3, The products are reliable, full numerical control equipment to each other with sealing, sealing performance and reliable; reliableraw materials and advanced forming process. The products of small stress, without annealing, fully applicable to central air conditioningsystem of alternating hot and cold and cold regions.
4, The surface of stainless steel shot blasting machine, copper texture perfect reproduction, no chemical treatment, no chemical residues,environmental pollution, emergence of corporate social responsibility;

OEM Service
Having our own factory and professional technicians,we welcome OEM orders as well.We can design and produce the specific product you need according to your detail information

After-sale Service
Our enthusiastic and friendly customer service representatives are ready to assist with any questions or problems.
