Product Description

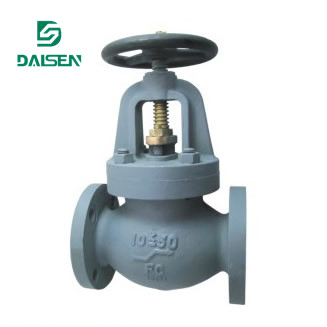

JIS MARINE VALVE

F7305 Cast iron 5K globe valves
JIS F7307 Cast iron 10K globe valves
F7309 Cast iron 16K globe valves
JIS Marine Globe Valve Industrial Valve

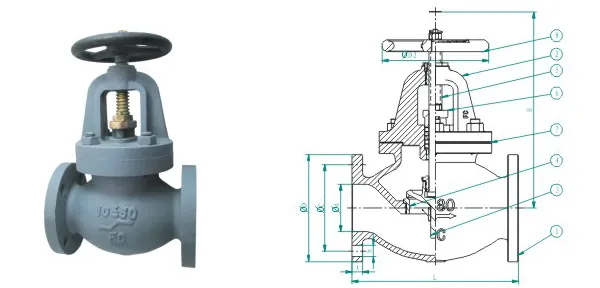

Materials Table

number	Name	Material		NAME OF PART	MATERIAL
number	Name	CLASS B	CLASS A	NAME OF PART	CLASS B	CLASS S
1	Valve body	HT200		Booy	FC200
2	valve deck	HT200		BONNET	FC200
3	Valve disc	HPb59-1	ZG2Cr13	DISC	BC6	SCS2
4	valve seat	ZCuSn5Pb5Zn5	ZG2Cr13	VALVE SEAT	BC6	SCS2
5	valve handle	ZCuSn5Pb5Zn5	1Cr12	STEM	C377IBD OH BE	SUS403
6	Gland	ZCuSn5Pb5Zn5		packing gland	BC6
7	Valve gasket	Non-asbestos		GASKET	non-asbestos
8	Valve handwheel	HT200		HANDWHEEL	FC200

Size Table(7305)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	210	130	105	4	15	16	270	160
65	65	250	155	130	4	15	18	300	180
80	80	280	180	145	4	19	18	310	180
100	100	340	200	165	8	19	20	360	224
125	125	410	235	200	8	19	20	390	250
150	150	480	265	230	8	19	22	445	280
200	200	570	320	280	12	23	24	530	315
250	250	740	385	345	12	23	26	650	355
300	300	840	430	390	12	23	28	740	400
350	335	940	480	435	12	25	30	840	500
400	380	1050	540	495	16	25	30	940	560

Size Table(7307)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	4	19	20	285	160
65	65	270	175	140	4	19	22	310	200
80	80	300	185	150	8	19	22	320	200
100	100	350	210	175	8	19	24	370	250
125	125	420	250	210	8	23	24	420	280
150	150	490	280	240	8	23	26	470	315
200	200	570	330	290	12	23	26	555	355
250	250	740	400	355	12	25	30	680	470
300	300	840	445	400	16	25	32	770	550

Size Table(7309)

50	50	220	155	120	8	19	20	285	160
65	65	270	175	140	8	19	22	310	200
80	80	300	185	150	8	19	22	320	200
100	100	350	210	175	8	19	24	370	250
125	125	420	250	210	8	23	24	420	280
150	150	490	280	240	8	23	26	470	315
200	200	570	330	290	12	23	26	555	355
300	300	840	445	400	16	25	32	770	550
